Spotting press

Reis TUS 80-100 Tuschierpresse

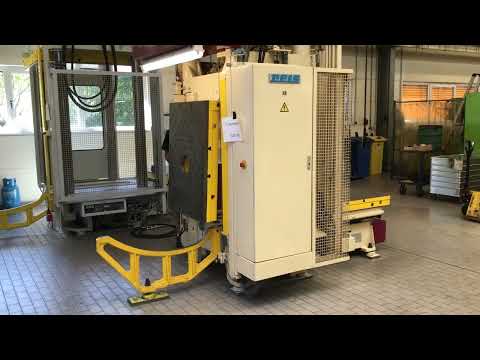

For sale is a used die-setting press from the manufacturer REIS with a maximum pressing force of 100 tons. The machine has a table size of 1,100 × 800 mm, a maximum installation height of 950 mm, and numerous features, including an ejector in the table, oil connection boxes for core pulls, and a 180° pivoting ram plate. It is therefore particularly suitable for die-setting operations, tool try-out, and testing in mold and tool making.

#####
Technical Data + Information:
Die-setting press – 100 tons – 1,100 × 800 mm

==== General Information
- Design: 4-column die-setting press
- Manufacturer: REIS
- Type: TUS 80–100
- Year of construction: 1998
- Pressing force: 26–100 tons (adjustable)
- Retraction force max.: 45 tons
- Table size: 1,100 × 800 mm
- Max. table load: 5,000 kg
- Installation height max.: 950 mm
- Overall dimensions (W x D x H): approx. 2,100 × 3,395 × 3,670 mm
- Total weight: approx. 8,500 kg
- T-slots: DIN 650 – 22 mm

==== Hydraulic Cylinder
- Pressing force range: 26–100 tons
- Retraction force: 45 tons

==== Hydraulics & Drive
- Hydraulic pump: REXROTH SYDFE11x71RN0030CAM
- Motor power: 7.5 kW
- Working pressure max.: 200 bar
- Pressure accuracy: ±5 bar
- Tank volume: 200 l
- Hydraulic oil: HLP 36

==== Motion System
- 180° pivoting ram plate
- Load capacity of the pivoted ram plate: up to 3 tons
- Ejector in the ram: 3.5 tons
- Ejector stroke: 130 mm
- Extendable table
- Table can be tilted to both sides
- Movable ejector in the table
- Oil connection boxes for core pulls
- Injection molding filling device in the ram
- Quick clamping plate on the ram

==== Control
- Operation via control panel
- Press force setting
- Operation of core pulls
- Control: Siemens / Pilz
- Digital measuring device

==== Safety
- Industrial machine control
- Operator panel with safety functions

==== Electrical Connection
- Main supply: 400 V AC
- Control voltage: 24 V DC
- Frequency: 50 Hz
- Connection power main motor: 7.5 kW
- Total connection power: 10 kW

#####

Application areas: Die-setting, tool try-out, mold making, tool making, injection molding tools, automotive, prototype construction, trial tools, maintenance, production preparation

(Die-setting press, try-out press, tool try-out press, hydraulic press, REIS TUS 100, 100 ton press, 4-column press, testing press, mold making press)
