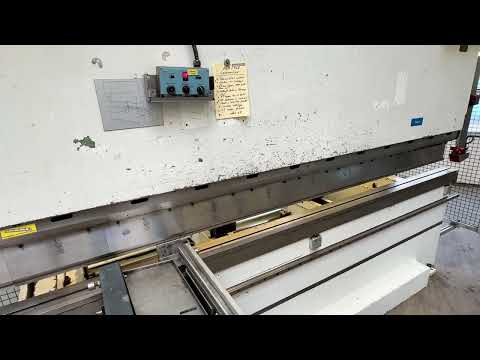

Hydraulic press brake

SafanDarley EHP 230t x 3100mm LS 31.25

Hydraulic press brake
Hedpfx Aezmi Hqsdlonp
Manufacturer: DARLEY, Type: EHP-LS 230.31/25
Year of manufacture: 2003

Technical data

Manufacturer: DARLEY
Type: EHP-LS 230.31/25
Year of manufacture: 2003
Capacity: 230 t
Usable length: 3,100 mm
Distance between uprights: 2,550 mm
Stroke: 470 mm
Installation height: 700 mm
Upright overhang: 400 mm
Motor power: 26 kW
Oil tank capacity: 200 liters
Weight: 16.3 t
Dimensions: Width 3,750 mm x Depth 2,700 mm x Height 3,550 mm (plus 200 mm for the control arm)

Equipment

• Control system: Delem DA-66W
• Automatic Wila/Trumpf tool clamping system + tool holders (top and bottom)
• Controlled axes: Y1, Y2, X1, X2, R1, R2, Z1, Z2
• CNC-controlled crowning
• Lazersafe safety light curtain (front)
• Rear safety guard via door/grille
• 2 adjustable support arms
•
• Tool set:
Top tool: straight, H 158 mm, R3, 28°, 100 t/m, 3000 mm, segmented
Top tool: slightly bent, H220 mm, R1, 86°, 2000 mm, segmented

All information is subject to change without notice.

A demonstration is possible at any time in our showroom.
