Laser cutting machine

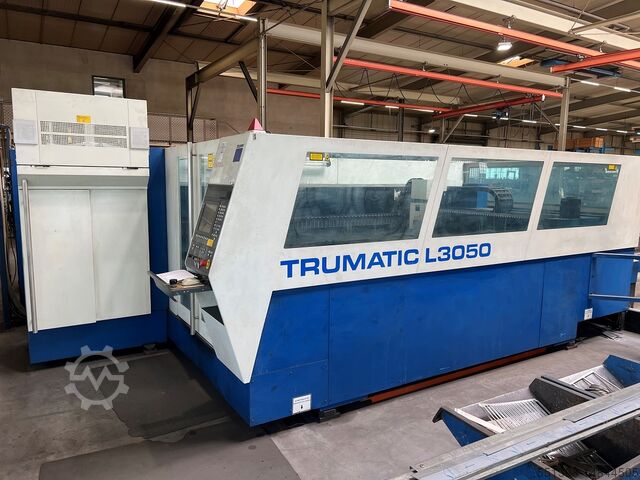

TRUMPF Trumatic L 3050 - 5 kw

TRUMPF Trumatic L 3050 - 5 kw

TECHNICAL DATA:

Make TRUMPF
Type Trumatic L 3050 - 5 kw
Year of manufacture 2005
Working area 3,000 x 1500 x 115 mm
Control Siemens Sinumerik 840 D
Laser power 5,000 watts
Max. Sheet thickness Mild steel 25 mm
Max. Sheet thickness stainless steel 20 mm
Max. Sheet thickness aluminum 12 mm
Operating hours approx. 58,000 h

STANDARD EQUIPMENT:

- Closed machine frame with integrated laser unit
- Laser unit: TLF 5000 CO2 laser, high-frequency excited, cooling unit, logbook function
- Automatic pallet changer
- Longitudinal conveyor belt for small parts/waste
- Drives: Gantry drive in combination with linear direct drives
- Laser power control
- HI-LAS high-pressure cutting
Ljdsrgaw Hopfx Af Dshh
- Plasma sensor system PMS
- Fast processing with SprintLas
- ContourLas for the production of small holes
- Programmable power cycles
- Microweld
- Programmable cutting gas pressure setting
- Laser cutting head with 5" lens and laser cutting head with 7.5" lens
- Quick-change cutting head device
- Automatic sheet outer edge detection
- Capacitive height control (DIAS)
- Process Control System (PCS)
- Position laser diode
- Automatic focus position adjustment AutoLas Plus
- Automatic switch-off
- Work area lighting
- SIN 840D control system: Open control system on PC basis, simple operation, online help,
diagnostic functions, maintenance logbook, technology data, teleservice
- Workshop programming ToPs 100 lite
- Safety: Multi-beam light barriers, beam guidance fully encapsulated and ventilated with nitrogen
ventilated, monitoring system, multi-chamber extraction system and compact dust extractor, safety cabin
- Network connection: BNC/RJ-45 network connection
- Electrical equipment for three-phase current 400 V / 50 Hz
- Paintwork: textured paint white RAL 9002 / gentian blue RAL 5010


EXTENDED EQUIPMENT:

- Additional laser cutting head with 9-inch lens
- NEW transmitter tubes on delivery
