Travelling column milling machine

Urban AP 6500 F

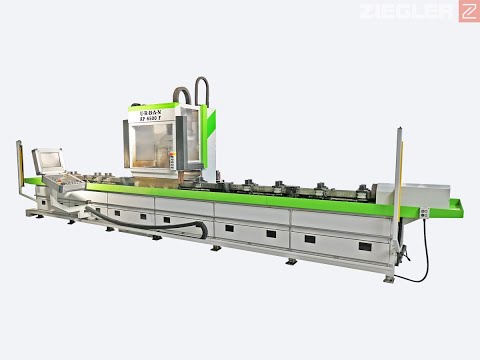

Urban AP 6500 F - travelling column milling machine

- Heidenhain path control iTNC 530, control panel can be moved over the entire machining length
- robust basic structure as a welded frame construction
- ball rail guides on all axes
- milling spindle unit: 80 - 6000 rpm, tool holder SK30
- X-axis with rack and pinion drive (30 m/min)
- Y-/Z-axis with recirculating ball screw (20 m/min)
- 6 chip drawers
- swivel clamping device for 6200 mm workpiece length
- 12 pneumatic workpiece clamps
- manually operated central lubrication
- moving plate tool changer for 8 tools
- micro spray
- cooling emulsion pump
- machine light
- safety fence
- safety bumper
- safety light grid
- machine protection hood opens pneumatically vertically
- control on: 33922 h
- Program run: 9847 h
- Spindle on: 7221 h
- Year of manufacture 2007

Technical data
- Travel paths X/Y/Z: 6500 / 275 / 310 mm
- Working area X/Y/Z with swivel device: 6200 / 155 / 110 mm
- Rapid traverse X/Y/Z: 30 / 10 / 10 m/min
- Continuous feed: 0 - 5000 mm/min
- Tool change: Disc changer with 8 tool positions
- Tool holder: SK30
- Tool clamping: pneumatic
- Coolant system: Micro-spray for flow drilling, cooling emulsion
- Spindle speed: 80 - 6000 rpm
- Speed correction: 80 - 120 %
- Drilling capacity in St60/Alu Ø: up to 18 / 20 mm
- Thread cutting capacity: up to M14 / M16
- Position measuring system: rotary encoder
- Positioning accuracy: 0.05 mm
- Repeatability: 0.025 mm
- Machining accuracy tolerance: ± 0.2 mm
- Compressed air connection: R 3/8" / 6 bar
- Device connection: R 1/4"
Ppsdpsu Awm Sefx Adrel
- Operating pressure: approx. 6 bar
- Air consumption per cycle: approx. 600 l/min at 6 bar
- Noise emission: 79 dBA
- Motor power: 15 kW
- Electrical connection: 3x 400 V ± 5% / 50-60 Hz
- Pre-fuse: max. 25 A
- Power consumption: approx. 13 kVA
- Control voltage: 24 V DC
- Space requirement with safety fence: approx. 34 m² (11.4 x 3 m)
- Machine weight with accessories: approx. 5000 kg
