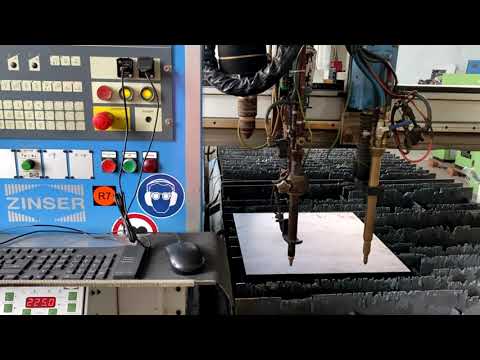

Plasma Cutting Device

ZINSER Zinser 2426N

Technical details:

cutting thickness max.: 0,5 - 70 mm
infeed - automatically: 40 mm
control: CNC 2050
table-size: 2x L:1500 x B: 1700 x H: 720 mm
burner heads: 2 Stück
weight of the machine ca.: 6,7 t

Autogenous flame cutting machine with table.
With corresponding additional equipment, the following processes can be performed:
Plasma cutting; Plasma signing; Marking; Graining; Boring.
other specifications:
2x tables:
-L:1500 x W: 1700 x H: 720mm, supporting surface L: 1500 x W: 1500mm; with suction connection Ø 320 x 60mm

Distance control system:
-Make ZAC 2100, type 7211-2-100 V02;
-size 105 x 165 x 130mm
-24 VDC; torch voltage 30 - 300V; protection class IP50
-ignition height 1 - 25mm in steps of 0,2mm
-cutting height 1 - 12,5mm in steps of 0,25mm
-Cutting height together 0 - 20mm in steps of 0,5mm

Height drive:
- Linear Drive model, type 2203; 24 VDC 100 - 190 watts; stroke 220mm.

Laser generator:
-manufacturer Kijellberg, type HiFocus 280i, welding rectifier
Gbsdpfx Abju Nwfuj Tjk
-Power range 10A / 84V - 280A / 192V; protection voltage IP22; cooling type AF; with 2x cooling connection 1/2".

Heat exchanger:
-manufacturer Kijellberg, type KWE 360
-working voltage U1 400V / 2,5A; protection type IP22; coolant of Kijellberg mixture; with 2x cooling connection 1/2".


*
