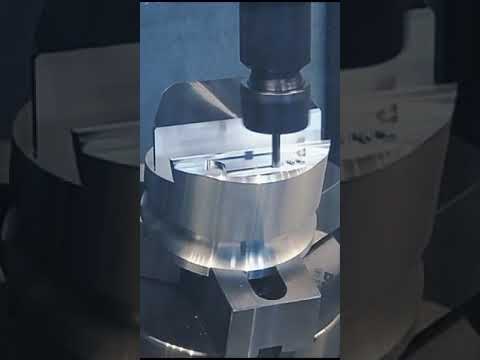

Machining center

AFM MEXPOL R280

DANE CHARACTERISTIC
table
Working surface of the table 750 x 270 mm
Number of T-slots in the table 3
Width of the T-slots in the table 14 mm
Distance between the T-slots in the table 100 mm
Maximum load of the table 100 kg
Maximum travel
Longitudinal axis "X" 280 mm
Transverse axis "Y" 280 mm
Vertical axis "Z" 400 mm
Rapid traverse
Longitudinal "X" 30 m/min
Transverse "Y" 30 m/min
Vertical "Z" 20 m/min
Spindle
Tool holder BT40 or SK40*
Tool clamping force 8 kN
Servo axis motors
In longitudinal axis "X" 3.5/6 Nm
In transverse axis "Y" 3.5/6 Nm
In vertical axis "Z" 3.5/6 Nm
Positioning accuracy of the linear axes +/- 0.005 mm
Main drive motor
Power S1/S6 (Siemens) 4.3/6.4 kW
Maximum torque on spindle S1/S6 38/57 Nm
Maximum spindle speed 8000 rpm
Gsdsu Sklajpfx Abxebg
Tool magazine
Number of tools/option* 8/16*
Maximum tool diameter 80 mm
Maximum tool length 150 mm
Maximum tool weight 3 kg
Overall dimensions
Length ~1360 mm
Width ~2200 mm
Height /maximum travel of the Z-axis/ ~2550 mm
Coolant tank volume 130 l
Weight ~1500 kg

Standard accessories:
SIEMENS CNC control system ✓
Interpolation in 3 axes ✓
Ball screw spindles, lubricated with solid lubricant ✓
Water-cooled tool cooling system ✓
8-station tool magazine, swivel arm BT40 or SK40 ✓
Electric handwheel ✓
Telescopic guide covers ✓
Cabin to protect the work area ✓
Lighting system with lamp ✓
Graphic programming support - predefined processing cycles ✓
LCD display 8" (S808) - 10.4" (S828) ✓
Thread cutting without compensation holder (fixed) ✓
Air nozzles at the end of the spindle ✓
Spindle cooling system ✓
TRIM MicroSol 515 cooling lubricant concentrate ✓
Safety system to prevent opening: front doors of the machining area / doors of the control cabinet ✓
Air pressure sensor for detecting low pressure ✓
Electrical installation for mains supply 3x400V, 50Hz ✓
USB port on the front panel of the machine ✓
Standard paint color similar to RAL 5000 / machine base; RAL 7035 ✓
Machine status display ✓
Operating and programming instructions ✓

Special equipment and special design..:
- Second 8-station tool magazine Swivel arm ISO40/BT40
- Spindle cooling 6-9 bar
- RENISHAW TS 27R tool measuring unit
- RENISHAW OMP40 workpiece measuring unit with cycles
- Separate spindle cooling unit for machining colored materials and plastics
- Handwheel on the bar (pilot)
- Tool trolley
- Precision clamping device
- Automatically opening doors
- Additional Ethernet output on the control cabinet for transferring programs between the computer and the machine
- Siemens - SinuTrain software
