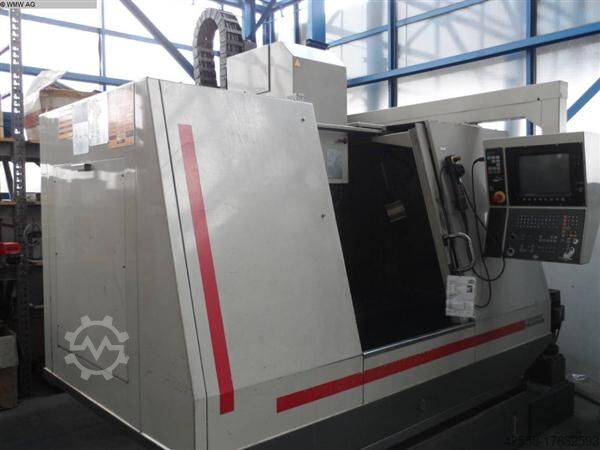

Machining Center - Vertical

CINCINNATI-MILACRON Sabre 750

Technical details:

x-travel: 762 mm
y-travel: 510 mm
z-travel: 560 mm
control: Heidenhain TNC 415 OR 360
tool changer with: 21 place
Cedpfsu Idmvsx Acderf
table clamping surface:: 865 x 510 mm
table load: 455 kg
tool taper: SK40
spindle revolutions per minute : 60 - 8000 U/min
feed:: X/Y/Z; 15 000 mm/min
rapid traverse : X/Y/Z: 24 m/min
compressed air: Bedarf: 5,5 bar
Total power requirement: 30 kVA
motor capacity: Spindelmotor: 11,0 kW
max. torque on the spindle: konstant: von 60 - 750 KN
Weight approx.: 4,3 t
dimension machine xH: 2,6 x 2,8 x 2,6 m
dimension coolant device: L: 2,7 x B: 0,8 x H: 0,8 m

Machining center with automatic tool changer

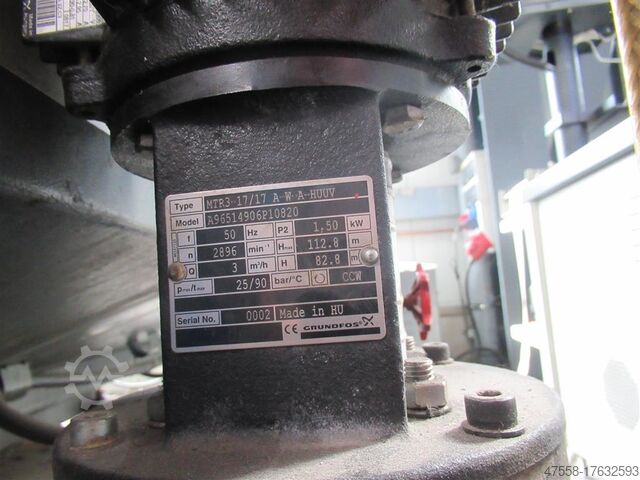

IKZ and coolant supply through nozzles
Chip and coolant tray
Lubrication system through ball screws

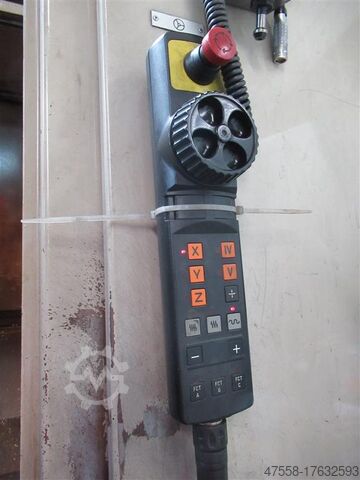

Manual control unit
Heidenhain TNC 415 - dialog or according to ISO (machining cycles: deep hole drilling; tapping; slot milling; rectangular pocket and circular pocket milling; SL cycles), up to 100 programs in file management
Machine can be visited with pleasure under power.
