5-axis CNC universal machining center

Deckel Maho DMC 60 T 2-fach Wechseltisch WZ 120 fach

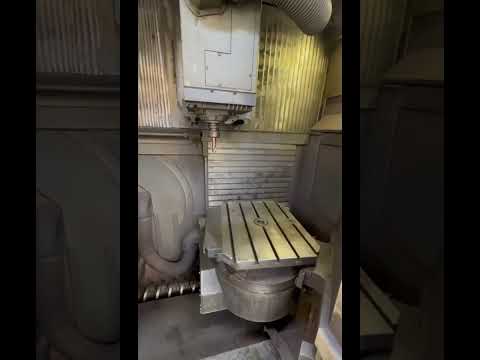

For sale is a machining center by Deckel Maho, model DMC 60 T.

The machine is in good condition and ready for immediate use.

Technical data:
Year of manufacture: 2005
Operating hours: 39,256
Power-on hours: 72,107
X-axis travel: 780 mm
Y-axis travel: 560 mm
Z-axis travel: 560 mm
Control: iTNC 530 Heidenhain
Spindle speed range: 20 - 12,000 rpm
Main spindle drive power: 28 / 19 kW
Max. torque: 125 Nm
Tool holder: SK 40
B-axis infinitely adjustable: 150° (-120/+30)°
Number of pallets: 2
Pallet size: 630 x 500 mm
Max. load: 400 kg
Table speed range: max. 30 rpm
Number of tool stations: 120 positions
Max. tool diameter: 80 mm
Max. tool diameter with adjacent pocket empty: 160 mm
Max. tool length: 315 mm
Max. tool weight: 8 kg
Rapid traverse ( X / Y / Z ): 50 m/min
Feed rate: 20 - 15,000 mm/min
Total power requirement: 64.2 kVA
Machine weight: approx. 12.0 t
Floor space required: approx. 7.0 x 7.0 x 2.8 m
Included in the offer:
Documentation, chip conveyor,
coolant system, high-pressure coolant 40 bar through spindle,
paper band filter, 2-position pallet changer, tool breakage monitoring
Accessories such as clamping devices or tool holders are NOT included in the offer.

Transport and loading can be organised throughout Europe at additional cost upon request.

Prices are subject to VAT.

Inspection is possible by appointment. Please contact us; our team will be happy to assist you.
Trade-in or exchange possible!
