Single-column eccentric press with gripper feed, eccentric stamping press, automatic stamping machin

EBU 75 SKU

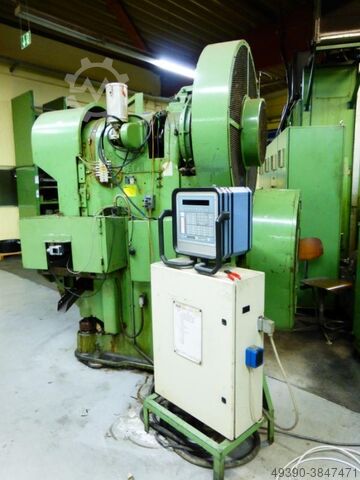

Single-column eccentric press EBU Type 75 SKU
Machine no. No. P 4598462 Year of construction 1962
Compressive force 75 ton.
throat depth 300 mm
Table surface 800 x 620 mm
waste hole 325 x 225 mm
Plunger surface 470 x 180 mm
Clamping pin bore Ø 40 mm
Table height above floor 845 mm
Stroke adjustment 16 - 140 mm
Plunger adjustment 80 mm
Installation height max. approx. 420 mm
Stroke rate 60 + 105 strokes/min.
Motor power 4 kW
Mains connection 380 Volt, 50 Hz.
- Pneumatic clutch/brake combination EBU
- Overload protection with breaker plate in ram

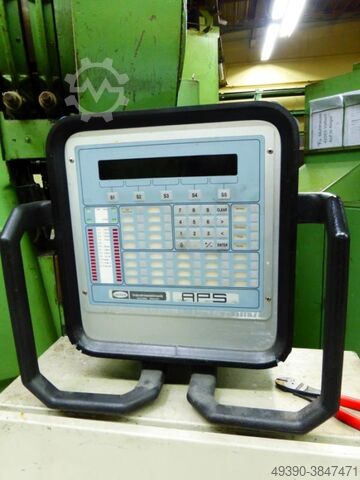

- UNIDOR tool monitoring system, type APS MINI

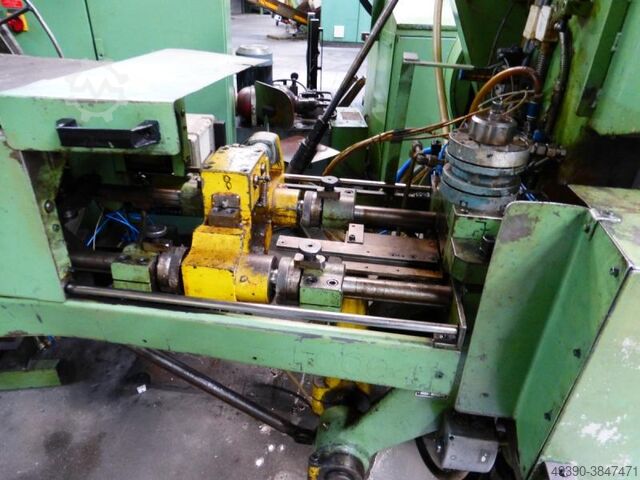

- mechanically driven gripper feed with belt straightener OSTERKAMP, type ZPN 200/350
- strip width: 200 mm, feed length: max. 350 mm
- Strip thickness: max. 3 mm or approx. 200 x 1.5 mm
Hfjdpsdzqltsfx Ag Hor
- 2 speeds due to 2 V-belt stages on the wheel transmission
- Two-handed operation
- Simple work area shielding for swinging open
- Table height adjustment in lowest position = threaded spindles for adjustment 50 mm below floor level
- Control cabinet and control panel for tool monitoring adjacent
- Automatic central lubrication
- 4 machine feet
Space requirement L x W x H 2600 x 2300 x 2450 mm
Weight approx. 5.5 tons
good condition
