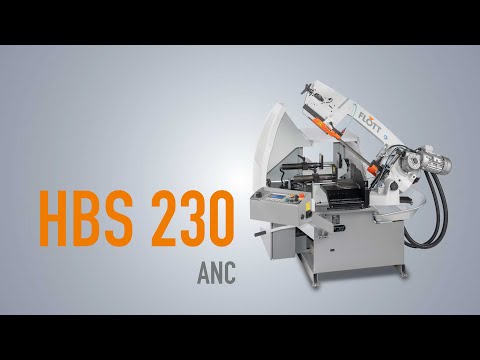

Band saw

FLOTT HBS 230 ANC (NEU ab Werk)

Compact, fully automatic band saw (also miter cuts up to 45°)
Torsion-resistant, robust cast iron saw frame
Driven chip removal brush
Powerful industrial worm gear motor
Automatic shut-off after cutting and subsequent raising of the saw frame to the continuously adjustable, preset starting position
Mechanical saw blade tensioning with electrical blade breakage monitoring
Minimum remaining piece length 180 mm, smallest possible diameter 5 mm
Feed accuracy of 0.2 mm
Electric coolant pump
Precision carbide saw blade guides,
ground (adjustable)
Easily removable chip collection tray
Including saw blade with combi-toothing 4/6
Machine color: - Saw frame RAL 7035 - Machine body RAL 7005
12-month warranty for single-shift operation

Motor: Three-phase, 400 V, pole-changing (kW) 1.1/1.5
Saw blade dimensions (mm) 2720 x 27 x 0.9
Flywheel diameter (mm) 300
Gsdpfxetpg Sas Abxott
Cutting speed (m/min) 40 – 80
Clamping width (mm) 275
Working height (mm) 768
2220 x 1650 x 1730 mm
Weight (kg) 495

DELIVERY: FREE (within Germany)

NOT THE RIGHT MACHINE?

WE ARE A FLOTT SUPPORT POINT PARTNER AND CAN OFFER YOU ALL PRODUCTS FROM THE FLOTT RANGE!
ASK FOR A QUOTE!
