Notching saw

LGF ALFA 55

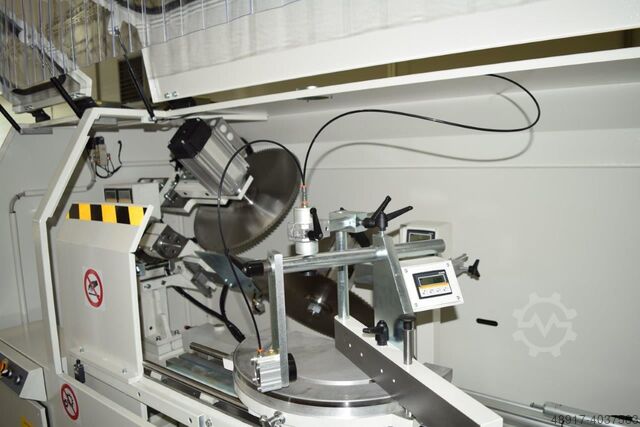

New notching sawing machine LGF ALFA 55 with Ø 500 mm and Ø 550 mm sawblades.

Bljdped Nh S Njfx Af Hsh
Machine in stock

Specification:
- Machine totally enclosed
- Cylinder stroke 825 mm
- Adjustable feeding of the sawing carriage 4-10 mt/min
- Both saw blades tilting range +/- 45° by means of hand wheel
- Possibility to perform cuts at any intermediate degrees
- Adjustable working bench in terms of height and depth by means of hand wheels
- Tilting fence on the working bench at 60°/90°/-60°
- Maximum profile height 215 mm
- Maximum profile width 250 mm
- Maximim depth of horizontal cut 190 mm
- Maximum depth of vertical cut 200 mm
- Three phase self-braking motors 2,2 KW (3 HP) - 2800 rpm
- Saw blade shaft Ø 30 mm
- Working pressure 7 bar
Equipment:
- Nr. 1 Digital Display on tilting fence
- Nr. 2 Digital Display on saw blade tilting
- Nr. 1 Digital Display on fence for profile tilting
- Nr. 1 Analogical counter on working surface height
- Nr. 1 Vertical TCT saw blade Ø 550 mm
- Nr. 1 Horizontal TCT saw blade Ø 500 mm
- Pneumatic clamps
- Automatic lubrication by means of nebulizer
- Waste retrieval front tank on wheels
- Nr. 2 waste retrieval tanks on the sides
- Air filter
- Service spanners
