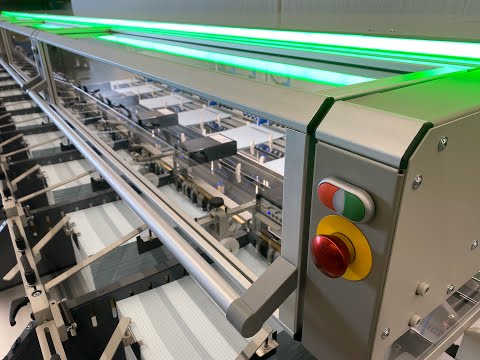

Gathering machine

MKW RAPID UT16 / B3 / GS + HA350

Showroom machine from the manufacturer!
Ideal for collating calendars, folded sheets (signatures), cardboard boxes of all kinds, packaging, ...
Calendar collating machine

Type - MKW RAPID
UT - System Belt conveyor table
16 - Number of stations
B3 - Format 35 x 50 cm / 13.78" x 19.68"
GS - High pile up to 70 cm

1 Automatic Collator
Type MKW RAPID UT / B3 / GS
- With 16 stations Belt-Conveyor-Table
- Sheet sizes 10 x 14 cm up to 35 x 50 cm
- Sheet sizes 3.94" x 5.51" up to 13.78" x 19.68"
- High-Pile version with max. 70 cm / 27.55" stacking height
- Paper weights up to 1.000 g/m²
- Single sheets, folded sheets (signatures), carton, plastic foils, …
- Belt conveyor transport table for continuous sheet transport
- Timing belts radially adjustable for optimal sheet delivery
- Timing belts radial adjustment via electrical clutches
- Foldable transport fingers
- Adjustable tilt suction heads for optimal pick up of sheets
- Pressure-vacuum pump in sound-absorbing housing
- Clocked blown air for accurate sheet layering
- Electronically adjustable sheet layering
- Electronic machine control by Industry-PC system
- High quality 15'' color display for reliable and clear operation
- Self-learning electronic missing/double sheet control per station
- Missing/double-sheet control by Infrared sensor MKW IR
- Tandem function for double use 2 : 1 (TANDEM-Mode)
- Dynamic station selection for optimized pre-loading for the next job
- Inserting function at any station possible
- Alternating insert function at any station possible
- Alternating cardboard function at any station possible
- Speed display infinitely adjustable
- Advance counter with adjustable stop for number of sets and stop time
- Delivery control system for criss-cross with adjustable set interval
- Transport table lighting with LED-Lamps
- Jam control along the transport table
- Active safety: Transparent safety hoods made of unbreakable PC

- Ejector unit inclusive additional station at the delivery AW 3 incl.
(for ejection of faulty sets)
- Raising unit for delivery rollers AHB incl.
Bwsdour Ih Repfx Af Deg
(for different paper formats in one set and signatures)
- Delivery Jogger-system integrated ASS i 3 incl.
(for normal and criss-cross delivery, incl. X-Jogger)
- LED signal lights to visualise the information of each station SOFU-HIVIS incl.
(enables simple status detection)

Alternative to Jogger:
1 High-Pile delivery
Type MKW RAPID HA 350-UT / PN + T-BELT
- Automatic high-pile delivery up to 30 cm piling of sets
- Format up to 35 x 50 cm
- Staggered delivery of sets
- Pneumatic drive unit for staggering of sets
- Automatic delivery on to buffer belt
- Buffer belt lenght approx 2,00 m
- Counter function for pile height
- Text display for operation and monitoring


Warranty Time
12 month spare parts warranty
(critical spare parts pack shipped with machine)
(not inclusive are belts, bulbs, rubber parts, suckers, …)


Package of free spare parts
A package of the most important spare parts and consumables
like rubber parts will be send together with the machine.

Validity of offer
Subject to prior sales

Detailed offer on request
