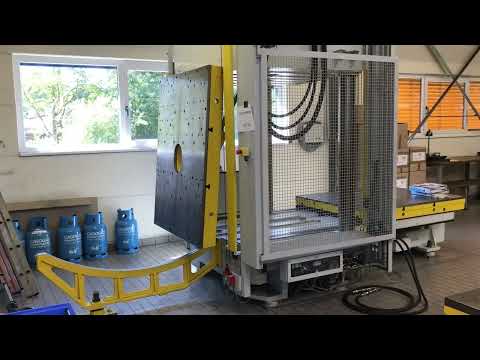

Spotting press

Reis TUS 130-100 Tuschierpresse

PERFORMANCE AND DESIGN:

Pressing Capacity: 26-100 T (adjustable)
Maximum Return Force: 45 T
Table Dimensions: 1,600 x 1,300 mm
Maximum Table Load Capacity: 12,000 kg
Distance – Ram to Lower Table (Max.): 1,700 mm
Frame Type: 4-column
Overall Dimensions approx. (W x D x H): 4,900 x 2,800 x 5,500 mm
Total Weight approx.: 17,000 kg
T-slots and drillings to DIN 650 – 22 mm

HYDRAULIC UNIT:

Hydraulic Pump (Brand: REXROTH): SYDFE2x/071R-PPA..
Motor Power: 15 kW
Max. Operating Pressure: 200 bar
Pressure Accuracy during Pressing Stroke: +/- 5 bar
Oil Tank Volume: 475 L
Hydraulic Oil Specification: HLP 36

ELECTRICAL SYSTEM ACCESSORIES
ELECTRICAL CONNECTION:

- Main Supply: 400V AC
- Control Voltage: 24V DC
- Frequency: 50 Hz
- Hydraulic Main Motor Connection: 15 kW
Gsdpexd Tv Dsfx Abxett
- Total Connected Load approx.: 21 kW

FEATURES

• 180° foldable ram plate up to 7.5 tons (tilted)
• Ram ejector 5.6 tons, 160 mm stroke
• Stroke extension by 300 mm
• Increased speed

DOCUMENTATION

• Hydraulic diagram
• Electrical diagram
• Technical drawing
• Data sheet

FUNCTIONS AND DESCRIPTIONS
CONTROL OF THE PRESS:
The press is operated via the operator panel.
• Raise/lower the ram plate
• Tilt the ram plate
• Extend/retract the table
• Operate the ejector
• Set press force

The control system is Siemens Simatic S7-634.
