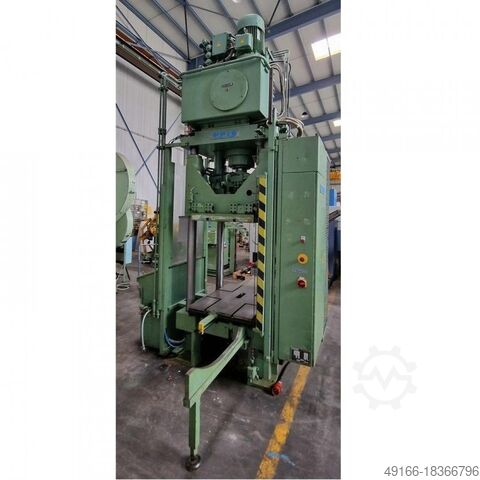

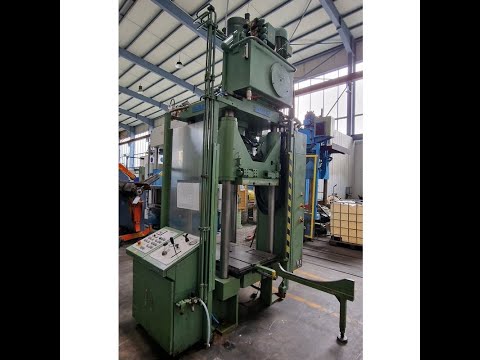

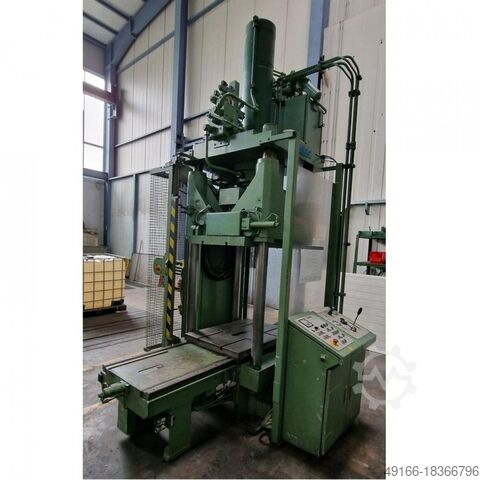

Spotting Press

REIS TUS 70 OK 70

pressure 70 t
distance between columns 750 mm
stroke 900 mm
table surface area 700 x 1000 mm
Distance table/ram, stroke up 900 mm
Cedovuumpspfx Alyorb
table height over floor 680 mm
ram surface 700 x 1000 mm
side window 600 mm
max. tool weight 5,0 t
max. capacity of swivelling ram plate 2,0 t
Speed down 0 - 50 mm/s
Speed up 0 - 48 mm/s
Working speed 0 - 8 mm/s
oil volume 140 l
power capacity 9,5 kW
weight 8,0 t
Dimensions (WxDxH) 2,2 x 1,2 x 3,7 m
with swivelling ram, movable table, ejector in table
can be inspected in running condition in our warehouse
