Vertical splines press

Sack & Kiesselbach VSP 50/30

With a focus on optimized and energy-efficient drives in the automotive industry, significantly higher demands are placed on the components of the drive system.

Higher power transmission, higher torques, and a smaller overall size are the challenges.
Chedpfx Asgtty Tscdja

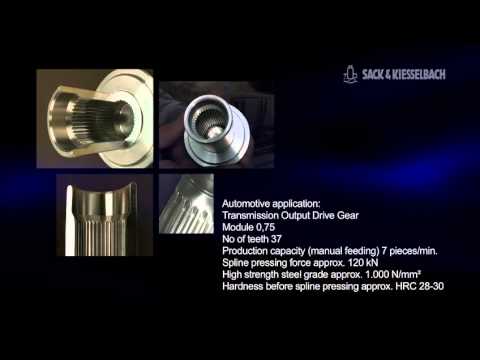

This development has led to an increased need for cold-formed splines.

With the vertical spline press (VSP), Sack & Kiesselbach provides customers with a solution that offers technological and logistical advantages compared to conventional technologies (such as rolling or broaching).

The relatively small and very user-friendly press can be configured for both manual and automated operation.

In addition to the spline press, the customer can also obtain the appropriate tooling system and the corresponding process technology from a single source.

1 used vertical spline press
Manufacturer: Sack & Kiesselbach
Type: VSP 50/30
Year of manufacture: 2015

Technical data:
Press force: 500 kN
Ram stroke: 450 mm
Closing speed: 200 mm/s
Pressing speed: 5.5 mm/s
Opening speed: 120 mm/s
Table dimensions: 500 x 400 mm
Installation height: 1000 mm
Distance between columns: 530 mm
Spline cylinder speed: 3-9.5 mm/s
Dimensions:
Height: 2900 mm
Width: 3100 mm
Depth: 1400 mm
Drive power: 8 kW

Special equipment:
Digital position measuring system
Spline tool for internal gearing
