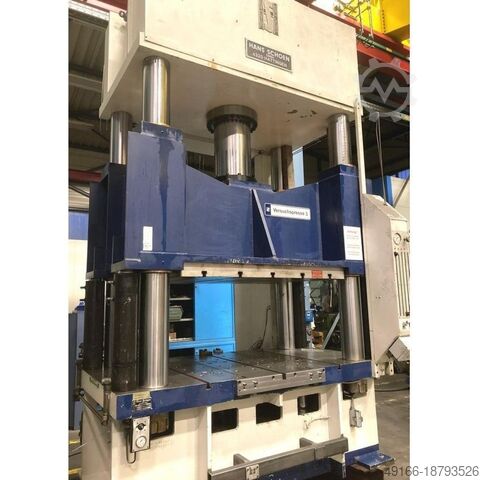

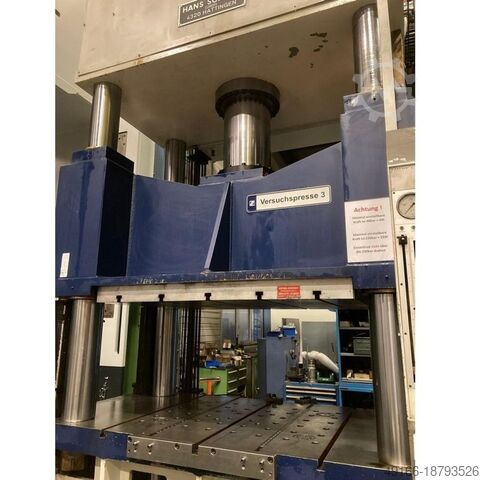

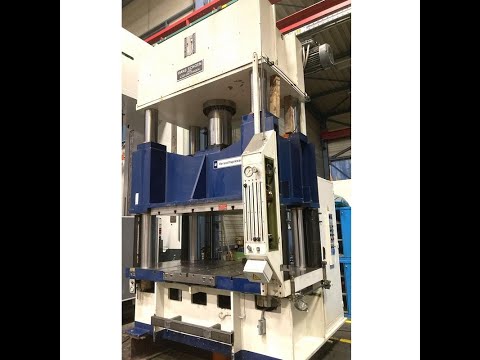

Double Column Drawing Press -Hydr.

SCHOEN WP 250 / 80

Pressure 250 t
stroke 500 mm
distance between columns 1650 mm
side window 750 mm
daylight 1200 mm

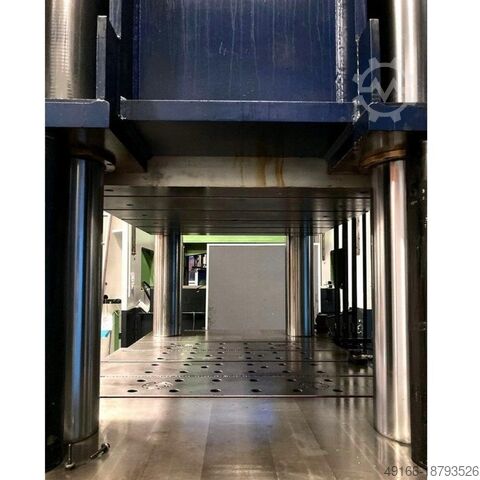

table surface area 1650 x 1250 mm
die cushion capacity in table 80 t
die cushion stroke in table 250 mm
die cushion area in table 1070 x 780 mm
table height over floor 850 mm
ram surface 1650 x 1250 mm
speed down 10 mm/s
speed up 80 mm/s
working speed 10 mm/s
Iaedpfov Svb Aex Agcjp
oil volume 400 l
power requirement 22,0 kW
Weight 21,5 t
dimensions (WxDxH) 2,7 x 2,3 x 4,25 m
height above floor 4,0 mm
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, controllable dependent on pressure and way, hydraulic drawing cushion in table, hydraulic cutting impact cushioning (4x Parallel holding cylinders), two-hand operation, hand lever operation
