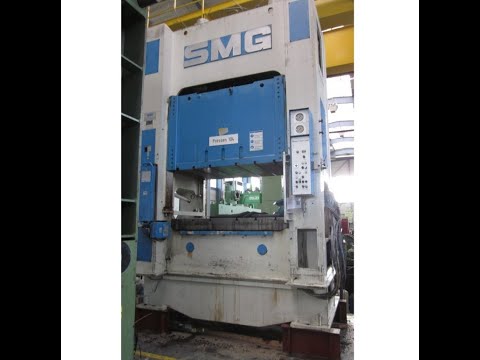

Double Column Drawing Press -Hydr.

SMG HZPU 200-1900/1150 (UVV)

Pressure 200 t
distance between columns 1910 mm
stroke 600 mm
distance table/ram, max. stroke up, adjustment up 800 mm
table surface area 1900 x 1150 mm
pressure of drawing cushion in table 80 t
stroke of drawing cushion in table 300 mm
die cushion area 1500 x 950 mm
table height over floor 800 mm
Itjdpjvuui Rjfx Anfjf
side window 1000 mm
ram surface 1900 x 1100 mm
return capacity 36 t
speed down 400 mm/s
speed up 170 mm/s
working speed 30,5 mm/s
oil volume 1500 l
height over floor 4,85 m
height beneath floor 2,6 m
power requirement 45,0 kW
weight 38,0 t
dimensions (WxDxH) 3,05 x 2,8 x 5,55 m
year of manufacture 1975 - modernization 1992
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, hydraulic drawing cushion in table, ram interlocking
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F
