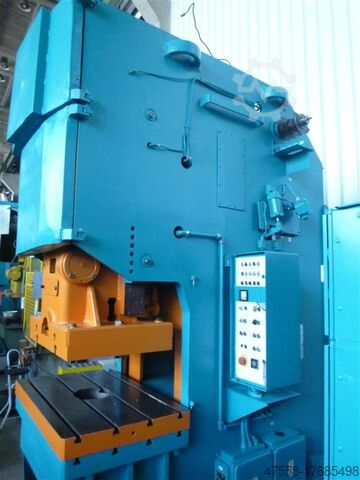

Eccentric Press - Single Column

WMW ERFURT PEE 160-III

Technical details:

Pressure: 160 t
stroke: 20-160 mm
throat: 400 mm
ram adjustment: 120 mm
no. of strokes: 71 Hub/min
daylight dimension : table/slide up: 720 (bei Hub 160mm) mm
Kdedsu N A U Iepfx Aa Usu
daylight dimension : table/slide low: 560 (bei Hub 160mm) mm

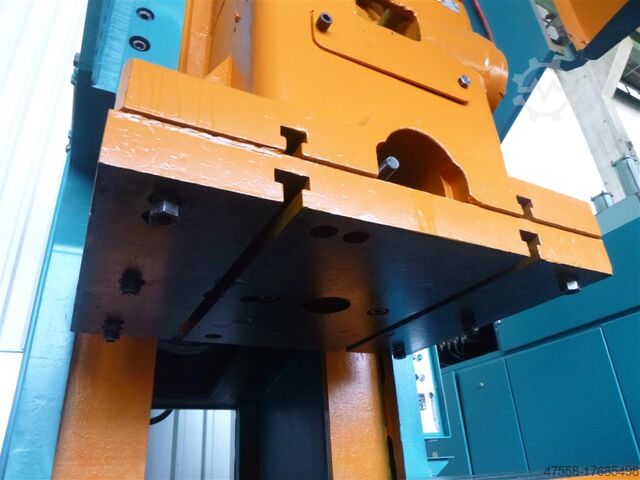

ram surface area: 900 x 660 mm
distance between columns: 500 x 450 mm

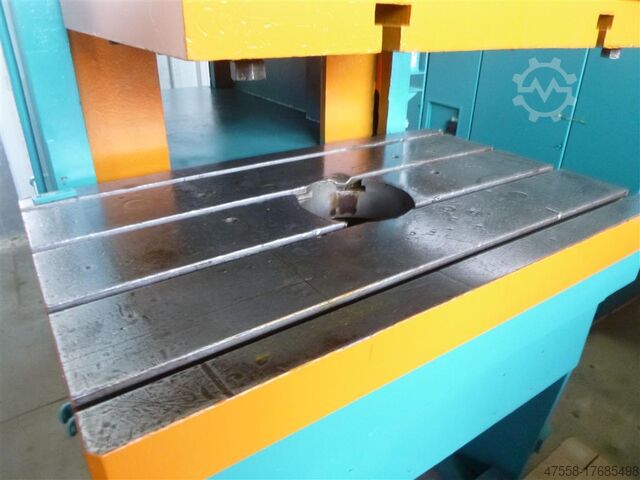

table surface area: LxBxØ: 1200 x 750 x 100 mm
total power requirement: ca. 23.0 kW
weight of the machine ca.: ca. 15,0 t
dimension machine xH: 2,7 x 1,5 x 3,45 m
dimensions electric cabinet LxWxH: 2,0 x 0,65 x 2,15 m

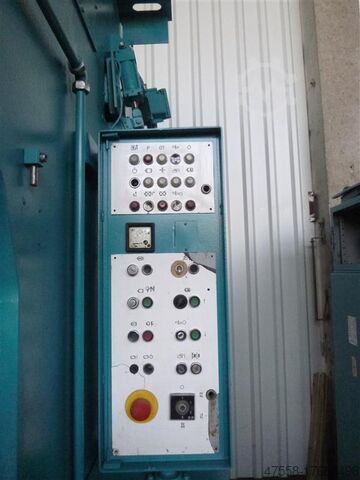

Operation via control panel/operator stand/foot control and hand-held control unit
The press can be offered with two options.
1st option:
Sold as is, not connected, not complete, not functional.
2nd option:
The baler will be refurbished, all parts will be exchanged, replaced and puddled. The press will be set up again.

For inquiries about this press, please select your offer option!
