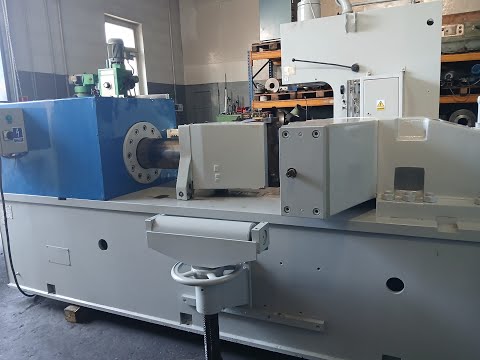

Horizontal hydraulic press 160 tons

WMW VEB PYXWM 160

Hydraulic horizontal box press PYXWM-160.
Manufactured by WMW VEB Dessau - 1978.
The machine has been overhauled. Ready to work.
Max. pressing force 160 tons.
Piston stroke 500 mm.
Piston speed:
Forward 30 mm/sec
Pressing 2.5 mm/sec
Backward 40 mm/sec
Height from base to center of piston 260 mm.
Machine frame height 780 mm.
Base length from support tool 600 mm.
Support tool length 520 mm.
Max. clamping width 1730 mm.
Working clamping width 400 mm.
Support tool height 400 mm.
Gedpfswndnujx Ad Asbi
Support tool spacing min-max 240-1100 mm.
Dimensions: Length 3370 mm.
Width 1730 mm.
Height 1480 mm.
Frame width 700 mm.
Engine power 11 kW.
Oil tank capacity 210 liters.
