Vertical machining center

YAMAZAKI MAZAK VTC 200B II

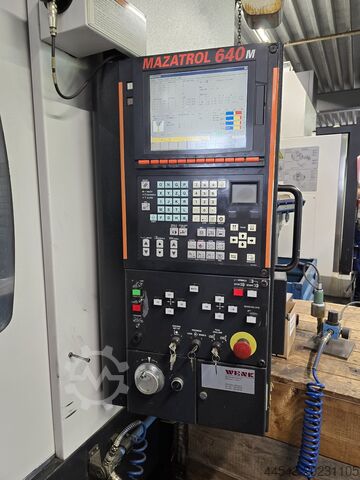

Control system: MAZATROL PC FUSION CNC 640M
Accessories:
- Indexing head as shown
- 3D probe
- Various tool holders

General machine options:
- Air blast device at the spindle
For chip removal and cooling of workpieces with compressed air
- Modified front door
Loading and unloading with crane possible via front door

Coolant supply:
- Reinforced coolant system KOWAP 18 bar
- Coolant gun

Factory automation options:
- Automatic power off
- 3 status lamps to indicate processing status

Measuring system:
- MARPOSS probe type T25G (wireless transmission)
incl. operation under MAZATROL: zero-offset shifting

Clamping table / Pallet:
- Prepared for KFTAGAWA NC rotary table RS250, without servomotor

Chip conveyor MAYFRAN:
- Hinged belt chip conveyor, side discharge on the right

Crodpfjxlp Tbsx Aa Tsh
Control system options:
- Torque-dependent drilling cycle (Mazatrol)
- Helical boring cycle
- Additional M-functions (2 pcs)
- Network card for wired network
- 64MB Type II PCMCIA card (PC-Flash Card) for machine data storage (backup)
- CNC performance options package

Worktable:
Table size (clamping surface): 510 x 1,460 mm
Maximum table load: 800 kg

Travels:
X-axis travel: 1,120 mm
Y-axis: 510 mm
Z-axis: 510 mm
Rapid traverse speed X-axis: 36 m/min
Y-axis: 36 m/min
Z-axis: 36 m/min

Feed rate: 1 – 8,000 mm/min
Distance spindle nose to table: 180 – 690 mm
Distance column front to spindle center: 530 mm

Working spindle:
Speed range (stepless): 40 – 12,000 rpm
Taper: SK40 DIN 69871A
Note: with Mazak pull stud

Number of tool stations: 24 tools

Coolant system
Tank capacity: 250 l

Machine weight: 7,850 kg
