CNC travelling column boring and milling machine, travelling column milling machine with HEIDENHAIN

ANAYAK HVM-3800-P

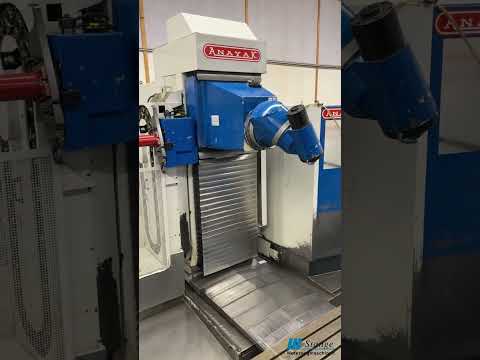

CNC Gantry-Type Boring and Milling Machine ANAYAK Type HVM-3800-P
Bed type milling machine, structure similar to a plate-type boring mill with fixed table
Machine No.: M-20021203 Year of manufacture: 2002 ("Refurbished 2025")
The machine will be completely workshop overhauled in 2025 and can then be inspected in storage at 37235 Hessisch Lichtenau.

Travel distances: X: 3,200 mm, Y: 1,200 mm, Z: 1,500 mm
Table size: 3,800 x 1,200 mm
T-slots: 8 pieces, 22 mm, spacing 130 mm
Table load: max. 25 tons (stationary table – virtually unlimited load capacity)
Spindle taper: ISO 50 (DIN69871-A) (drawbar: DIN 69872-B)
Spindle speed: 60 – 4,000 rpm, stepless
Feed rate: up to 10,000 mm/min, stepless
Rapid traverse X + Y: 20 m/min
Rapid traverse Z: 10 m/min
Spindle drive: 22 / 30 kW
Electrical connection: 400 Volt, 50 Hz, 50 kVA

- Automatic tool changer for 30 tools
Ijdpfsxcgtgjx Aa Sstf
- Spindle drive with 2 speed ranges
- With automatic tool changer and tool magazine
- Orthogonal milling head with hydro-mechanical tool clamping
- Orthogonal milling head fully automatic swiveling in two 45° planes – B+C axis
- HEIDENHAIN iTNC 530 control, with electronic handwheel
- Prepared for wireless touch probe (probe and receiver not included)
- Additional HF-spindle, 18,000 rpm – for attachment
- Free-standing control cabinet
- Chip conveyor positioned between the gantry bed and the machine table
- 32,078 operating hours recorded
- Coolant system
- Free-standing hydraulic unit
- Operating manual with circuit diagrams
Installation area (L x W): approx. 1,000 x 700 cm
Installation height: approx. 410 cm
Weight (total): approx. 33 tons
Good condition
