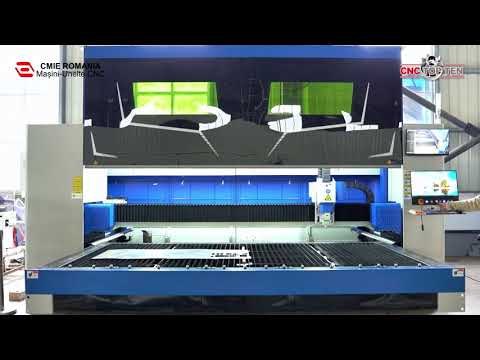

BAISON Laser M3 3kW 3x1.5m compact laser cutting

Description BAISON M3: (3 kW) from stock Europe.
table length 3.050 mm
Gsdpovcbf Ijfx Ab Tebk
table width 1.530 mm
laser head Ray-tools autofocus
laser capacity in Kw 3 Raycus
total power requirement 25-30 kW
We can deliver from (1 till max 6 Kw)
overall dimensions 4750x2260x2100 mm
weight of the machine ca. 4.550 kg

Configuration:
- Raycus Laser source 3 Kw (opt. other laser power)
- Cypcut (full option control)
- High integrated, simple operation, leading technology
- Ray-tools autofocus cutting head
- Nesting, With leapfrog, Edge seeking, Fly cutting
- 2x LCD monitor control, keyboard, control panel
- central Lubrication system
- video camera inside machine

Cutting capacities:
- normal steel 20 mm
- stainless steel 12 mm
- aluminum 10 mm
- brass 8 mm
- copper 8 mm

Axes:
- Machine axes: 3 axes (X, Y, Z,)
- X-axis travel 3050 mm
- Y-axis travel 1530 mm
- Z-axis travel 100 mm
- Axis speed X / Y: 120 m / min
- Positioning accuracy: +/- 0.03 mm/m
- Repeatability accuracy +/- 0.03 mm
– Acceleration max. 1,2 G

Table platform 1500mm complete outside for leading:
- table load 1000 kg.

assisting gases:
- mild steel - oxygen (0.5 - 2 bar)
- stainless steel - nitrogen (5 - 16 bar)
- Aluminium - compressed air or nitrogen (5 - 16 bar)

 
including:
- Complete safety features for CE
- Safety relay
- Protection grade IP54
- Spare part basic supply package with nozzles and lenses
- Professional software for cutting and nesting metal sheets
- AC unit for electrical cabinet
- Pneumatic table holders clamps for thin metal sheet, anti-vibration system
- Automatic door-up and table-out system
- Dual temperature water cooling system


Why CNC Top Ten bv

- Cnc Top Ten company have over 50 year experience in CNC machines.
- And we have more service and sales locations in west and east Europe
- our service team know from beginning how to respect service, installation and training.
- for this machine the installation and training is 1 week. Not included in machine price.
- we can offer cost also depend on end-user place and country.

- Machines for cutting sheets metal
- Fiber laser is the green laser technology for the future
- (Saving of at least 50% energy costs)
- Components / therefore very low-maintenance
- Save up to 50% per part through more efficient production
- In addition, precise cuts and smooth surface quality
- Heavy-duty constructed frame,
- equipped with world-famous, durable, high-quality components
- Light barrier for moving table, safety protection
- Complete CE standard
