Lathe-conventional-electronic

BERNARDO TITAN 660-3000 Digital

turning length 3000 mm
turning diameter 660 mm
turning dia. in gap 900 mm
turning diameter over slide 460 mm
turning speeds 25 - 1600 U/min

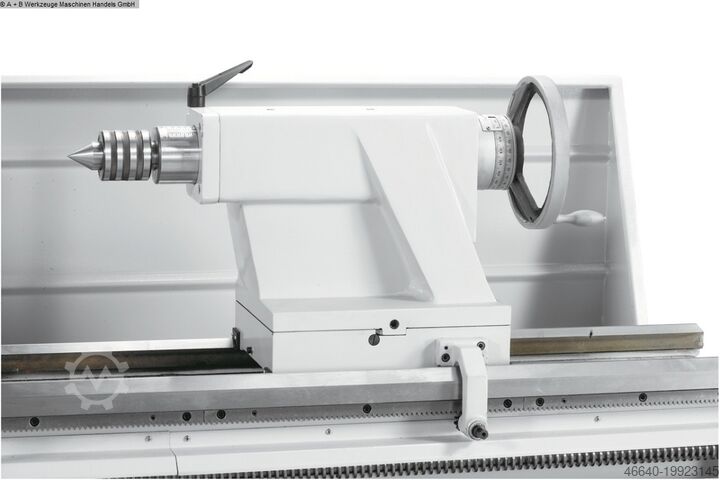

quill: 5 MK
quill travel 235 mm
spindle bore 105,0 mm
engine output 7,5 kW
spindle taper DIN 55029 D 1-8
weight of the machine ca. 3.300 kg.
Cjdpfx Ahjxaahlspohd
dimensions 4.630 x 1.200 x 1.529 mm
Scope of delivery
- 3-axis digital display ES-12 V with LCD display
- Slip clutch
- Rapid traverse longitudinal and planar
- LED machine light
- 3-jaw steel chuck PO3-315 mm / D8
- Clamping disk 450 mm
- Fixed steady rest - passage diameter max. 180 mm
- Follow-on steady rest - passage diameter max. 120 mm
- 2 centering points
- Motor with magnetic brake in accordance with CE standard
- Foot pedal with brake function in accordance with CE
- Initial filling with Shell Tellus 46
- Coolant system
- Quick-change tool holder with 4 inserts
- Protective device for quick-change tool holder
- Change gears
- Reduction sleeve
- Chip back wall
- Cable routing via energy chain
- Operating tool
