Machining Center - Universal

DECKEL MAHO DMC 80 FD

x-travel 800 mm
y-travel 700 mm
z-travel 600 mm
control SIN 840D Powerline
spindle turning speed - stepless 1 - 8.000 U/min
power capacity at 40 % load 28,00 kW
spindle diameter in front bearing 80,00 mm
spindle taper HSK-A100

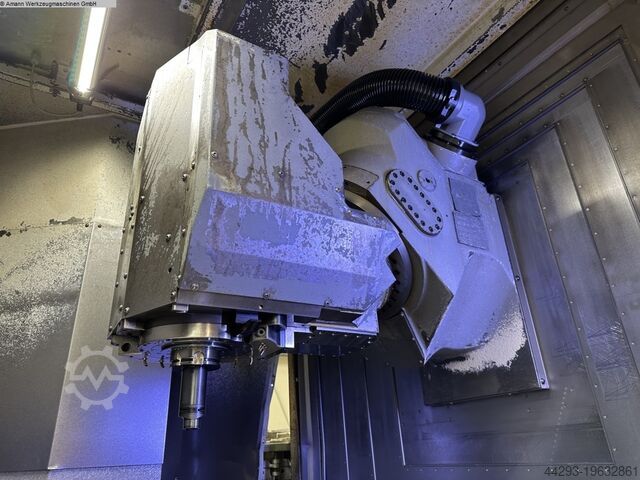

B-axis 187 °
feed X/Y/Z-axis 15.000 mm/min
rapid traverse X/Y/Z 50,00 m/min
feed force X/Y/Z axis 10.000 N
rapid traverse B-axis 11,20 U/min
size of pallet 800 x 630 mm
table load 0,80 t
c-axis 360,000 x 0,001 °
table turning speeds 1 - 500 U/min
toolpiece magazine: chain magazine 120 Stück
tool diameter 100 mm
tool diameter with 2 vacant positions 160 mm
tool length - max. 350 mm
weight of tools max. 10,00 kg
total power requirement 60,00 kW
weight of the machine ca. 13,00 t
dimensions of the machine ca. 7,40 x 5,30 x H3,50 m
Itjdpfx Ajw Df A Ssdmjc
With Siemens SIN840D control, tool taper cleaning, tool breakage monitoring,
coolant system, 2 pressure levels (40bar / 80bar), chip conveyor,
operating mode 4, exhauster.
