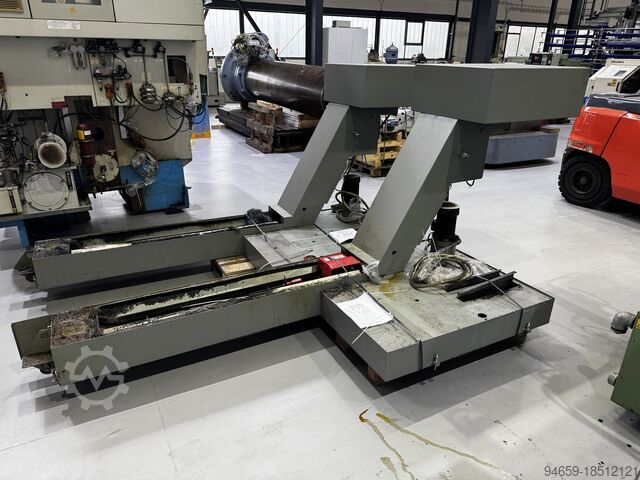

Vertical turning lathe

DMG CTV 250

Workpiece Specifications:

Max Swing Diameter: ~2500 mm (98.4 inches)
Max Turning Height: ~2000 mm (78.7 inches)
Max Workpiece Weight: ~10,000 kg (22,046 lbs) (depending on configuration)
Spindle Specifications:

Spindle Drive Power: ~50 kW (67 hp) (approximate, depending on model)
Spindle Speed Range: ~10-500 rpm (variable, depending on model)
Spindle Taper: Typically a large taper suitable for heavy-duty turning.
Table Specifications:

Bodpfx Ahsvy Ti Hs Dodk
Table Diameter: ~2500 mm (98.4 inches)
Table Load Capacity: ~10,000 kg (22,046 lbs)
Axis Travel:

X-Axis Travel: ~2000 mm (78.7 inches)
Z-Axis Travel: ~2000 mm (78.7 inches)
Tooling:

Tool Holder Type: Typically VDI or similar heavy-duty tool holders.
Number of Tools: Depending on the turret configuration, typically 12 or more tools.
Accuracy:

Positioning Accuracy: ~0.01 mm (0.0004 inches)
Repeatability: ~0.005 mm (0.0002 inches)
Dimensions and Weight:

Machine Weight: ~30,000 kg (66,139 lbs) (approximate)
Machine Dimensions: ~5000 x 4000 x 4000 mm (196.9 x 157.5 x 157.5 inches) (approximate)
Additional Features:

Coolant System: High-pressure coolant system for efficient chip removal and cooling.
Automation: Optional automation systems for loading/unloading of workpieces.
CNC Control: Advanced CNC control for complex machining tasks.
