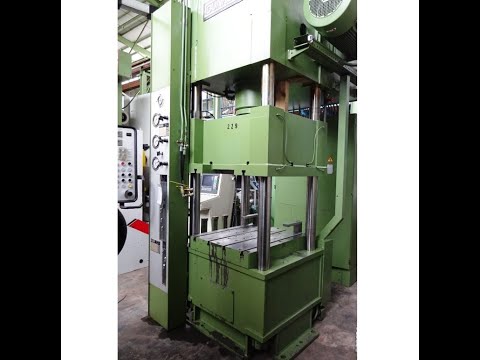

Double Column Drawing Press -Hydr.

DUNKES HS 4 - 100 (UVV)

pressure 100 t
distance between columns 770 mm
stroke 200 mm
distance table/ram, stroke up 800 mm
Table area 770 x 900 mm
table height above floor 850 mm
die cushion pressure in table 40 t
die cushion stroke in table 200 mm
die cushion area in table 600 x 600 mm
side window 600 mm
ram surface 770 x 900 mm
speed down 62 mm/s
speed up 350 mm/s
working speed 17,5 mm/s
oil volume 700 l
power requirement 42,0 kW
Fodovut Ufjpfx Ad Eofw
weight 9,0 t
Dimensions (WxDxH) 2,6x 2,0 x 3,8 m
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic drawing cushion in table, cutting impact cushioning, depth stop
No foundation pit necessary
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F - Video at seller's site before dismantling available
