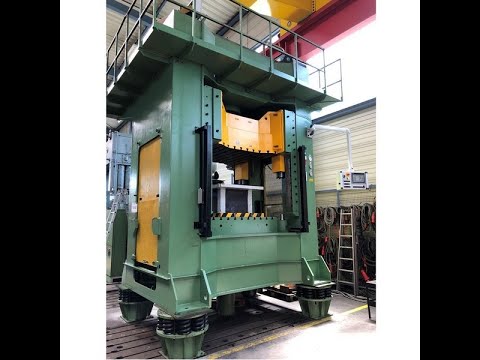

Double Column Drawing Press -Hydr.

HYDRAP HPDZB 315 (UVV)

Pressure 315 t
stroke 750 mm
distance between columns 1700 mm
Distance table/ram, max. stroke up, adjustment up 1250 mm
Cgedpfx Asvuuf Eokusu
Table surface area 1600 x 1300 mm
pressure of drawing cushion in table 125 t
Die cushion stroke in table 350 mm
Die cushion pressure in ram 1000 x 900 t
Ram surface 1600 x 1300 mm
Side window 1100 mm
feed down 400 mm/s
feed up 400 mm/s
working feed 12 - 44 mm/s
oil volume 2500 l
power requirement 35,0 kW
Weight 43,50 t
dimensions of the machine ca. 3,6 x 3,1 x 6,0 mxmxm
height over floor 4,9 mm
yom 1987 -> 2018: new electric control Siemens S 7
new ligh guard at the front (Sick C 4000)
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning, ram interlocking, controllable dependant on pressure/time and way, two-hand operation
press can be inspected in running condition in our warehouse
