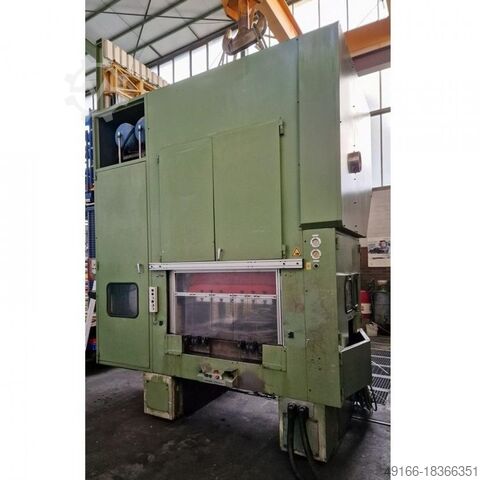

Double-sided high speed press

KAISER V 160 WR / 1300

pressure 160 t
stroke 20 - 120 mm
no. of strokes 20 - 120 /min
distance between columns 1300 mm
column travel -side 520 mm
dayligth 570 mm
table surface area 1250 x 900 mm
Kodovut Rtopfx Aaaend
hole in the table 900 x 250 mm
table height over floor 1000 mm
ram surface 1100 x 700 mm
ram adjustment 100 mm
material width 20 - 320 mm
material thickness 0,3 - 4,0 mm
feed length 1,0 - 9999,99 mm
power requirement 18,5 kW
weight of the machine ca. 25,0 t
dimensions of the machine ca. 3,0 x 2,3 x 3,7 mxmxm
permitted for automatic mode according to the German Safety Regulations (UVV)
with infinitely variable drive, pneumatic clutch/brake combination, electro-hydraulic overload protection, automatic stroke adjustment, motoric ram adjustment, pneumatic counterbalance in ram, motoric centralized circular lubrication
electronic roll feed make Kaiser type KWV 320 Z, yom 2000 with hydraulic intermediate lifting of the rolls
