Tool Room Milling Machine - Universal

KNUTH WF 1 / Digi

x-travel 300 mm
y-travel 200 mm
z-travel 350 mm
table surface area 700 x 270 mm
taper in main spindle ISO 40
turning speeds 8: 150 - 1660 U/min
turning speed range - horizontal 8. 110 - 1230 U/min
feeds 8: 25 - 285 mm/min
weight 900 kg
quill stroke 60 mm
total power requirement 3,7 kW
range L-W-H 1,3 x 1,38 x 1,65 m
Kjdovxllkopfx Aftodw

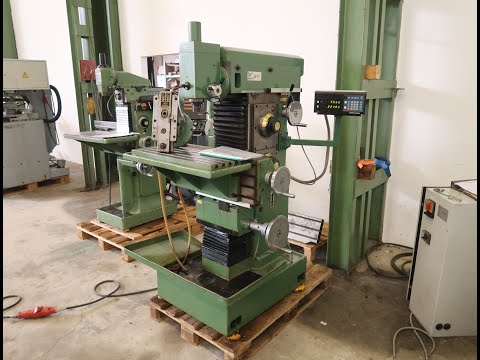

Universal tool milling machine with 2 axis digital display and swiveling
vertical milling head with quill, fixed + swiveling table, slotting head,
automatic feeds and rapid trverse in all three directions. Machine from a
repair shop.
The digital display shows 2 axes because the third axis display is defective.
All three scales are OK and you can choose which of the 3 axes should be
connected.
Machine dealer with own stock of 1600 m².
