Roller leveller

LASA RH 16-200

Technical details:

material width: 400 mm
material thickness: 2 mm
Number of Straightening rolls: oben/upper/arriba: 5x
Number of Straightening rolls: unten/lower/abjo: 6x
roll width: 410 mm
throughput speed: 9-20 m/min
total power requirement: 5,5 kW
Dkedeu Ic Dyopfx Algjt
Weight approx.: 1,3 t
space requirement of the machine approx.: L:2,1xB:1,0xH:1,35 m

description:

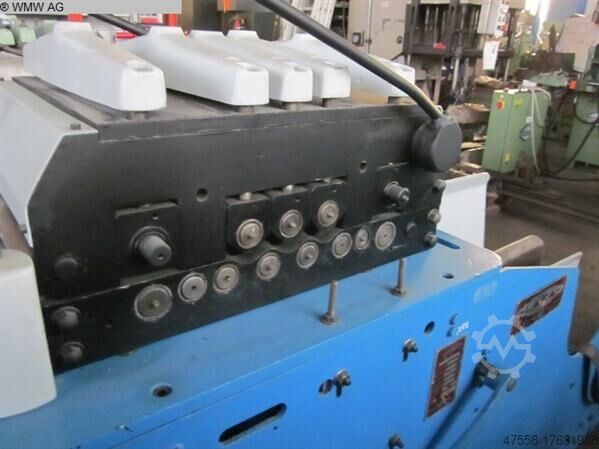

- upper rolls adjustable around 14mm, not driven
- lower rolls not adjustable, driven
- each 1 intake/output roll (dia 35x410mm)

equipment:

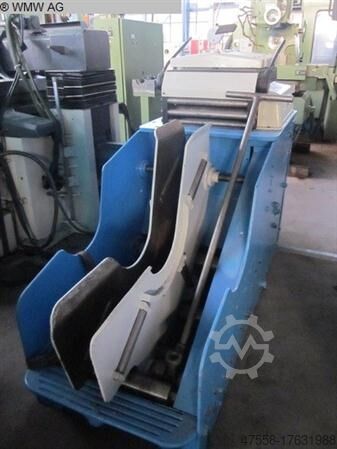

- drum intake (L:1,2xW:0,7xH:1,16m), with 4 pcs rolls and guidance waggon
- 2 intake limits / output limits

This straightening machine must be electrically integrated by the customer!

*
