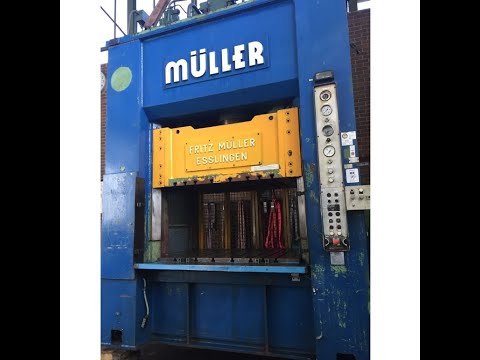

Double Column Drawing Press -Hydr.

MUELLER KEZ 160-16/6.1.1 (UVV)

pressure 160 t
distance between columns 1620 mm
stroke 600 mm
Distance table/ram, stroke up 800 mm
table surface area 1600 x 1100 mm
table height over floor 750 mm
die cushion pressure in table 63 t
die cushion stroke in table 180 mm
Die cushion area in table 1300 x 750 mm
side window 600 mm
ram surface 1600 x 1100 mm
oil volume 1160 l
power requirement 30,0 + 16,0 kW
weight 23,6 t
dimensions (WxDxH) 2,9 x 2,3 x 4,65 m
Height above floor 4,26 m
permitted for manual loading according to the German Safety Regulations (UVV)
Kodpsvut Ryofx Abaewt
with oil-hydraulic drive, hydraulic drawing cushion in table
No foundation pit necessary
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F
Video at seller's site before dismantling available
