CNC 4-Axis Lathe
Okuma LU300-2ST 350

Name: Okuma LU300-2ST 350
Brand: Okuma
Availability: InStock

година на производство

2005

Состојба

Користено

Локација

Германија

Прикажи карта

Податоци за машината

Ознака на машината:: CNC 4-Axis Lathe

Произведувач:: Okuma

Модел:: LU300-2ST 350

Година на производство:: 2005

Состојба:: подготвен за работа (половен)

Цена и локација

Локација:: Deutschland

Повикајте

Детали за понудата

ID на огласот:: A19805780

Референтен број:: INNO29761

Ажурирање:: последно на 20.08.2025

Опис

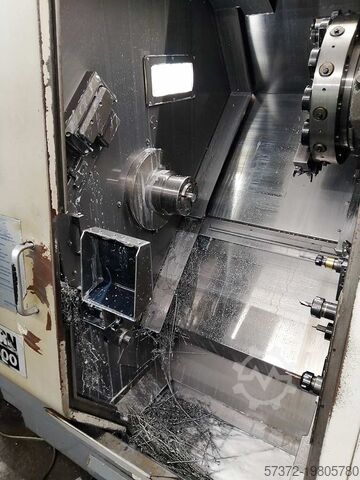

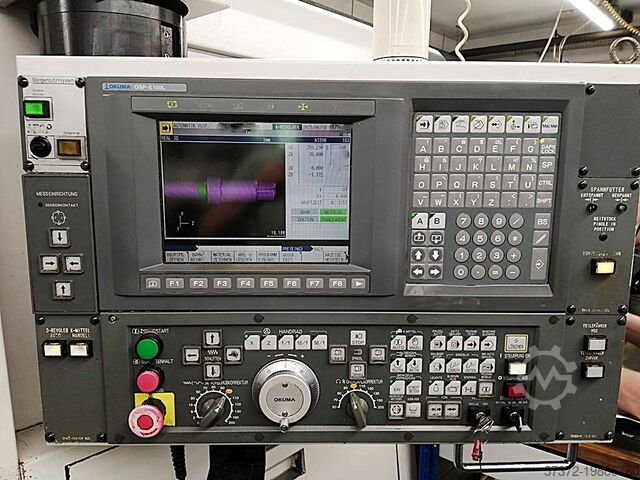

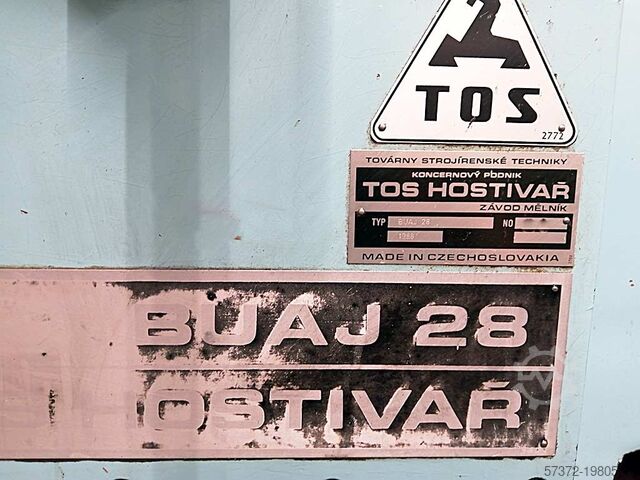

A CNC 4-axis lathe Okuma including a conventional external cylindrical grinding machine TOS BUAJ 28 is available. 1) Lathe, year of manufacture: 2005, turret: 2-disc turret, tool positions: 12/8, tool holder: VDI40, speed: 3800rpm, turning diameter: 370mm/530mm, turning length: 600mm, machine dimensions X/Y/Z: approx. 4000mm/2300mm/2200mm, weight: approx. 6800kg, control: Okuma OST E100L. Includes clamping device design, part catcher, part conveyor, and chip conveyor. Without tailstock, bar loader, spindle reduction, and VDI holders. 2) TOS, year of manufacture: 1988, max. grinding diameter: 280mm, center height: 140mm, distance between centers: 630mm, max. workpiece weight: 120kg, headstock: MT4, workpiece spindle swivel range: +/-90°, grinding head swivel range: +/-45°, grinding wheel dimensions X/Y/Z: 400mm/40mm/127mm, speed: 2560rpm, feed rate: 7m/min. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/1500mm, weight: approx. 2000kg. Includes accessories and grinding wheels. Documentation available. An on-site inspection is possible.
