Center lathe

Ryazan 165X5000

Ryazan universal lathe, type 165×5000; the machine has undergone a major overhaul. It is in excellent condition, ready to work.

Basic technical parameters:

• Turning diameter over bed: 1000 mm
• Turning diameter over support: 600 mm
• Turning length: 5000 mm
• Spindle passage: 85 mm
• Spindle taper: ISO100
• Main drive motor power: 22 kW
• Machine dimensions: 8050x2100x1760 mm
• Weight: 15650 kg

ADDITIONAL EQUIPMENT:
• steady rests

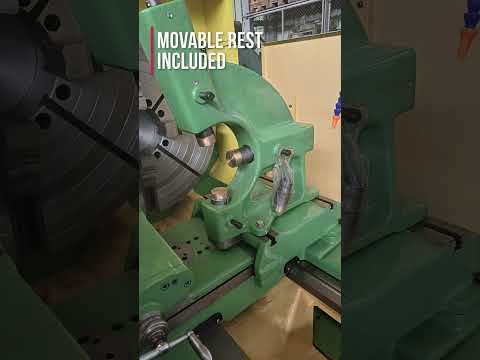

• follow rest
• 1000 mm chuck
• the lathe can be additionally equipped with a digital readout in 2 or 3 axes.

The machine underwent a major overhaul, including: inspection of components and repair / replacement of parts (feed box, support box, tailstock, headstock); spindle grinding and replacement of spindle bearings; regeneration of the sliding surfaces of the bed and supports (transverse and tool); regeneration of lead screws and making new nuts; replacement of the electrical installation; preparation of the machine for the installation of readings in 3 axes; adaptation to minimum health and safety requirements. In addition, new safety handles have been used and new safety signs and pictograms have been installed.
Predpou Ecx Sjfx Abgjd

We will send you more information about the lathe on offer upon request.

We also have a wide range of spare parts for lathes type 165, 1M65, 1H65, RT117, DIP500 and many others. Our warehouse includes both electromagnetic clutches and other electrical and mechanical parts for the above lathes.
