Eccentric Press - Single Column

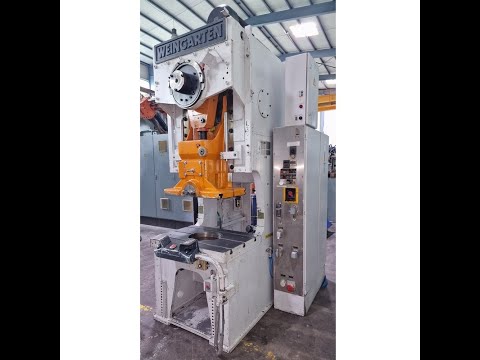

WEINGARTEN ARP 80 (UVV)

pressure 80 t
stroke 8 - 112 mm
no. of strokes 65 /min
throat 345 mm
passage to the back 500 mm
dayligth 472 mm
table surface area 840 x 610 mm
hole in the table 280 / 315 mm
table height over floor 800 mm
ram surface 650 x 410 mm
ram adjustment 71 mm
power requirement 13,5 kW
Weight 6,10 t
dimensions of the machine ca. 1,5 x 1,9 x 3,0 m x m x m
Hfodevut Npspfx Afvjh
with motor with two speeds, pneumatic clutch/brake combination (Ortlinghaus), mechanical overload protection in ram, manual stroke adjustment, motoric ram adjustment, fix table, motoric centralized lubrication, two-hand operation
