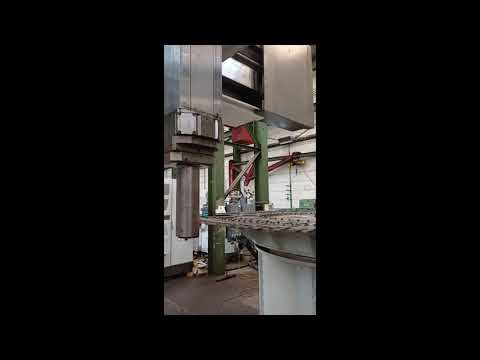

Vertical Turret Lathe - Single Column

DÖRRIES VCE 200/140

Technical details:

faceplate diameter: 1400 mm
swing diameter: 2000 mm
turning height: 1270 mm
Bljdpovb Dcmofx Ac Hok
main drive: 80 kW
faceplate speeds from - to: 1 - 355 U/min
max. workpiece weight: 6.000 kg
milling motor: 37 kW
milling head speed: 7 - 3000 U/min
milling spindle - taper: ISO 50
cross rail adjustment - vertical: 800 (8 x 100 mm) mm
ram head dimension: 240 x 240 mm
max. ram stroke: 1250 mm
weight of the machine ca.: 50 to
total power requirement: 133 kVA
dimensions of the machine ca.: 11 x 5 x 6,4 m

Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control
- tool changer for 72 tools
- C-axis, live tooling
- angular- and straight tool holder head with CAPTO taper
- Transmit function
- complete splash housing
- coolant device, chip conveyor
- diverse accessories

*
