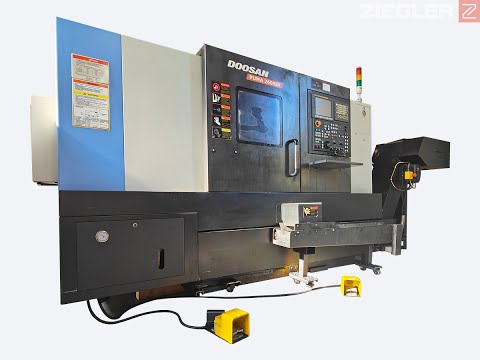

6-axis CNC turning center

DOOSAN PUMA 2600SY

- Doosan-Fanuc CNC control
- Breuning-Irco ILS RBK 10012 bar feeder
- Samchully MH-212 315 mm 3-jaw chuck
- Samchully MH-206 175 mm 3-jaw chuck
- Year of manufacture 2011

Technical specifications

Capacity:
- Swing over bed: 780 mm
- Swing over carriage: 630 mm
- Recommended turning diameter: 255 mm
- Maximum turning diameter: 376 mm
- Maximum turning length: 760 mm
- Bar loading capacity: 76 mm
Spindle:
- Spindle speed (belt type): 3500 rpm
- Spindle nose: ASA A2#8
- Spindle bearing diameter: 140 mm
- Spindle bore Ø: 86 mm
- Min. spindle indexing angle (C-axis): 0.001 °
- Counter spindle speed (integrated): 6000 rpm
- Counter spindle nose: ASA A2-5
- Counter spindle bearing diameter (front): 90 mm
- Counter spindle through hole diameter: 62 mm
- Min. counter spindle indexing angle (C-axis): 0.001 °
Tool turret:
- Number of tool stations: 12
- Tool outer diameter: 25 mm
- Boring bar diameter: 50 mm
- Indexing time (1st swivel time): 0.15 s
- Spindle speed of the driven tools: 5000 rpm
Feed rates:
- X-axis: 260 (72+188) mm
- Z-axis: 830 mm
- Y-axis: 102 (± 51) mm
- Rapid traverse X-axis: 30 m/min
- Rapid traverse Z-axis: 30 m/min
- Rapid traverse Y-axis: 10 m/min
Nwsdpjuxua Iefx Aftop
Motors:
- Main spindle motor: 22 kW
- Subspindle motor: 7.5 kW
- Spindle for driven tools: 5.5 kW
- Feed motors (X/Z/Y axes): 3.0 / 4.0 / 3.0 kW
- Coolant pump: 0.4 kW
Electrical connection:
- Power supply: 54.55 kVA
Dimensions:
- Machine dimensions WxHxD: 3600 x 2163 x 1863 mm
- Machine weight: 6450 kg
Breuning bar loader:
- Max. bar diameter: 5 - 100 mm
- Max. bar length: 250 - 1250 mm
- Table surface: 650/900 x 1250 mm
- Guide channels: 10 / 20 mm
- Motor power: 2.0 kW
