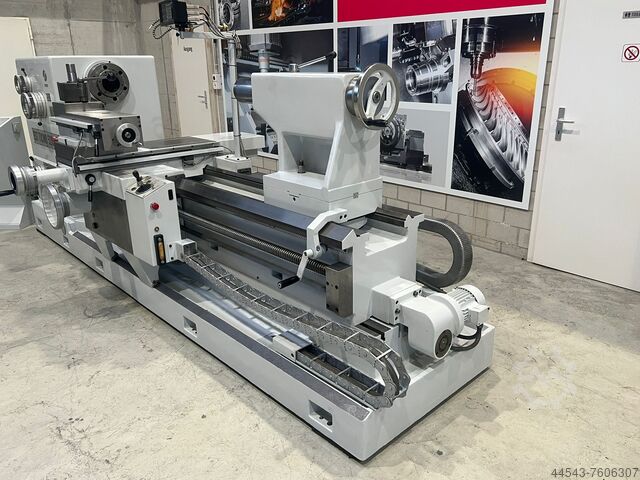

Lathe

EST Ticino ET-BM 520 x 2000

- Digital display.
- Accessories available.
Working range
Center height 520 mm
Center width with closed bed 2000 mm
Center width with open bed 3200 mm
Width of cranking with open extended bed 1200 mm
Turning diameter above the cross slide 710 mm
Turning diameter above the bed 1040 mm
Turning diameter in the crank 1780 mm

Headstock
Bledpsikfbdefx Agbjr
spindle bore 132 mm
diameter of the spindle in the front bearing 240 mm
spindle nose D1-11" Camlock
Torque 1100 Kgm

Bed and bed slide
bed width ("Meehanite" cast iron) 600 mm
Length of bed slide guides 900 mm
Width of the cross slide 420 mm
length of the cross slide 1050 mm
Travel of the cross slide 770 mm
width of the rotatable top slide 270 mm
Length of the rotatable top slide 650 mm
Travel of the rotatable top slide 400 mm
Tailstock
Diameter of the quill - with driver 130 mm
quill taper 6 CM/MK
Quill adjustment 300 mm

Miscellaneous
Max. Weight capacity at the faceplate
with center of gravity at 200 mm 2500 kg
Max. weight absorption between centers 4500 kg
Passage of fixed steady rest 200 - 500 mm
Coolant pump (75 l/min) 0.2/0.15 HP/kW

total length 4500 mm
with upper bed extension 5700 mm
height 1550 mm
weight 9,1 t
