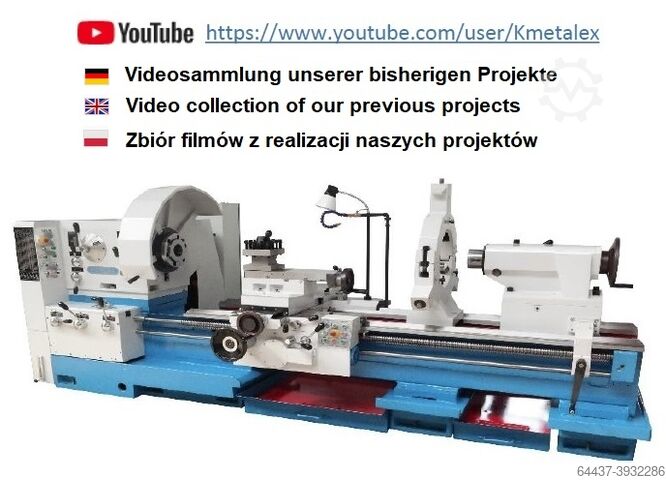

Universal lathe machine

FAT TUR 630M x 2000

The universal lathe FAT TUR 630M/2M has been comprehensively rebuilt and modernized, has technical parameters in accordance with the technical and operational documentation DTR of a new machine, WOT technical acceptance conditions and the Polish Standard and also meets EU requirements.
Hedpfx Aaod Ead To Deg

The machine is covered by a full 12-month warranty on spare parts and electrical components.

Availability: on stock available, under power, technical inspection anytime after appointment

Technical specifications:

- distance between centers/turning length: 2000 mm
- turning diameter over bed: 630 mm
- turning diameter over support: 380 mm
- spindle bore diameter: 90 mm
- maximum workpiece weight between centers: 1500 kg
- number of spindle speeds: 21
- range of rotational speeds (rpm): 18 - 1800
- range of feeds (mm/rev):
longitudinal: 0.05 – 3,26
transverse: 0.25 – 1,63
- engine power: 15 kW
- overall dimensions:
total length: 3900 mm
width: 1420 mm
height: 1500 mm
total weight: 3400 kg

Standard equipment: tailstock, coolant pump, tool post, chuck cover

Additional equipment available at extra charge:

- 3- or 4-jaw chucks, various diameters and variants
- Digital readout on 2 axes with assembly and calibration
- Steady rest, 10-140 mm, with rollers
- Steady rest, 10-180 mm, with rollers
- Steady rest, 140-300 mm, with rollers
- MULTIFIX quick change tool post
