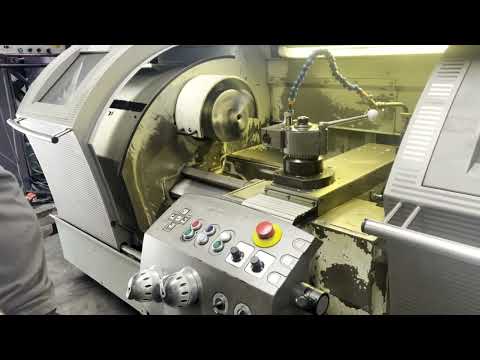

CNC Lathe

GILDEMEISTER NEF 520

Technical details:

turning diameter over bed: 500 mm
turning dia. over face-slide: 290 mm
turning length: 850 mm
centre distance: 850 mm
longitudinal traverse (z-axis): 900 mm
facing movement (x-axis): 260 mm
control: Manuaplus 4110
revolution per minute: 10 - 3000 / 2x seples U/min
max. torque on the spindle: 920 Nm
spindle bore: 70 mm
facing movement (x-axis): 8 m/min.
Lrsdpjwtct Hsfx Ahret
longitudinal traverse (z-axis): 10 m/min.
operating hours - idle run: ca. 34.600 h
tailstock taper ISO: MK 5
tailstock quill stroke: 180 mm
total power requirement: 24 kVA
Weight approx.: 5,2 t
dimension machine xH: 2,2 x 3,2 x 1,9 m

Multifix steel holder size C
3-jaw chuck Ø 250mm
chip tray
manual hour counter
live center in tailstock
Operation control panel and monitor
Accessories:
4-jaw chuck Ø 250mm with internal jaws
various chuck keys
Machine lighting
8x foot plates
4x wedge lifters
various pairs of jaws
1x steady rest Ø 100mm closed

*
