Machining Center - Vertical

HURCO VMX 42

Technical details:

x-travel: 1060 mm
y-travel: 610 mm
z-travel: 610 mm
control: Ultimax 4
spindle speed:: 10 - 10.000 U/min
tool taper: SK40
tool changer with: Trommelmagazin mit 24 Plätze places
feed speed: XYZ: 3 - 7.000 mm/min
rapid traverse:: XY: 30 m/min
rapid traverse: Z: 20 m/min

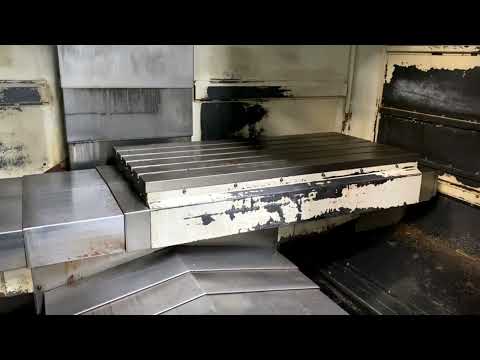

table-size: 1220 x 510 mm
table load: 1,1 t
air-pressure connection: für 6 bar bar
Total power requirement: 30 kVA
Weight approx.: 6,28 (ohne Anbauteile) t
Hjdsu Iddnjpfx Adlenp
dimension machine xH: 2,82 x 3,2 x 2,7 m
dimension swarf conveyor LxWxH: 3,0 x 0,65 x 1,5

The machine is currently in the technical department.

delimited working area by chip splash guard cabin
incl. cooling device with feeding (30bar internal coolant system) (size 1200x500x150mm) capacity for 340Liter
spindle with internal coolant system
Scraper belt chip conveyor
control panel with two screens

Attention! Tool gripper arm for tool change is missing on the machine! Is on sale with this limitation!
i.D.


*
