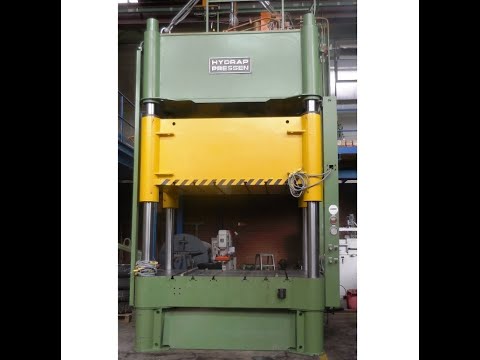

Try-out press

HYDRAP HPD-S 125 (UVV)

pressure 125 t
distance between columns 2100 mm
stroke 1000 mm
dayligth 1300 mm
Csdpfx Aovut D Togboaa
table surface area 2230 x 1300 mm
die cushion capacity 63 t
die cushion stroke 60 mm
die cushion area 1000 x 900 mm
table height over floor 1050 mm
ram surface 2100 x 1000 mm
feed down 50 mm/sec
feed up 50 mm/sec
working feed 10 mm/sec
oil volume 410 l
power requirement 22,0 kW
weight 31,0 t
required space 3,1 x 1,7 x 5,95 m
hydraulic try-out press
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic drawing cushion in table and ram, hydraulic ejector in table, ram interlocking, two-hand operation
No foundation pit necessary
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F
