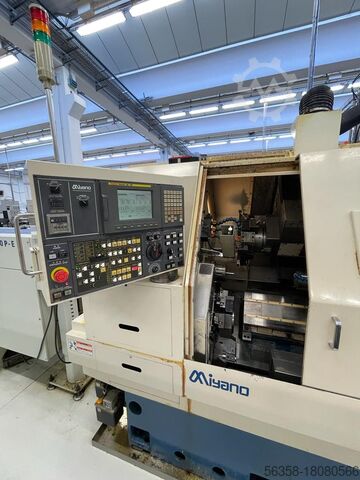

CNC LATHE

Miyano BNE-51SY

MAIN SPINDLE:
Variable rotation range rpm 4000
ASA spindle nose 6"
Max. bar working diameter mm 51
BA 52 collet group
Motor power kW 7.5/11
COUNTER SPINDLE:
Hnedpfx Ajvi E H Aodqsi
Variable rotation range rpm 4000
ASA spindle nose 5"
Max. bar working diameter mm 51
BA 52 collet group
Motor power kW 7/5.5

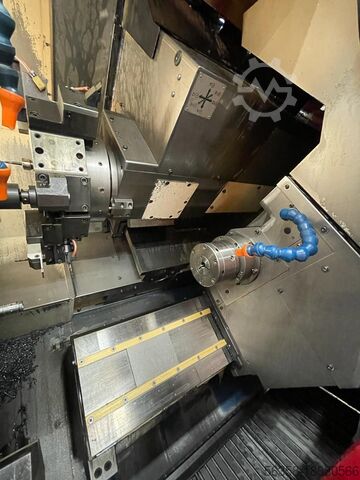

TURRET 1 + MOTORIZED TOOLS:
Number of positions 12
Number of motorizable positions 6
Variable rotation range rpm 50 - 4050
Motor power kW 2.5
Tool shaft for external 25x25
TURRET 2 + MOTORIZED TOOLS:
Number of positions 10
Number of motorized positions 5
Variable rotation range rpm 50 - 3600
Motor power kW 1
Tool shaft for external 25x25
AXES:
"X1" axis stroke mm 150
"Z1" axis stroke mm 380
"Y" axis stroke mm +/- 40
"X2" axis stroke mm 115
"Z2" axis stroke mm 125
DIMENSIONS-WEIGHT:
Overall dimensions with chip conveyor mm 2855 x 2070 x 2083 h
Weight with chip conveyor kg 7200
