CNC turning and milling center

Mori Seiki NT1000SZM

🔹 For Sale: 2010 Mori Seiki NT1000SZM Mill Turn Centre – Excellent Condition – Ireland 🔹

Make: Mori Seiki
Model: NT1000SZM
Year: 2010
Control: MSX-711IV
Machine Type: CNC Mill Turn Centre (Tool Spindle, Main Spindle, Sub Spindle, Lower Turret)
Condition: Excellent
Location: Ireland
Availability: Immediate

📌 Description:

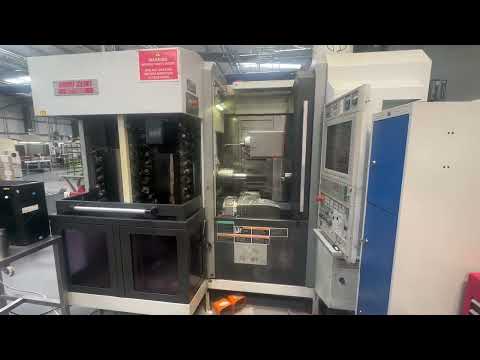

Available for sale is a Mori Seiki NT1000SZM Mill Turn Centre, a premium multi-tasking CNC machine in excellent condition with only 16,520 cutting hours. Featuring a high-speed 20,000 rpm milling spindle, dual spindles, lower turret, and simultaneous 5-axis capability, this machine is ideal for advanced and precise mill-turn operations in the aerospace, medical, and high-precision engineering sectors.

This machine is comprehensively equipped and designed to handle complex, multi-sided machining with reduced setups and high throughput.

High-spec 5-axis Mori Seiki NT1000SZM Mill Turn Centre with 20,000rpm spindle, sub spindle & turret. In excellent condition.

🧰 Included Equipment:
Kitagawa 5" Chuck (Sub Spindle)
Kitagawa 8" Hollow Chuck (Main Spindle)
Full Selection of Tool Holders (as seen in videos)
Swarf Conveyor
70 Bar High Pressure Coolant System
Air Blow for Main Chuck and Tool Tip
Tool Presetter (Tool Spindle & Turret 2)
Workpiece Conveyor (Bar Feeder Spec)
Bar Feed Interface
Tool and Workpiece Counters
Signal Tower
Double Foot Switch for Both Spindles
Part Program Storage (1MB) with 1000 Registerable Programs
Knoll Compact Filter Unit
Double-Wound Transformer

🔧 Technical Specifications:
🔹 Turning Capacity:
Max Turning Diameter: 370 mm
Max Turning Length: 400 mm
Bar Work Capacity: 65 mm
Main Spindle Through-Hole: 73 mm

🔹 Spindles:
Main Spindle Speed: Up to 6,000 rpm
Sub Spindle Included
Spindle Drive Motor: 11/7.5 kW

🔹 Milling Tool Spindle:
Max Speed: 20,000 rpm
Taper: Capto C5
Tool Spindle Drive Motor: 9/5.5 kW
X Axis Travel: 380 mm
Y Axis Travel: 210 mm
Z Axis Travel: 480 mm
B Axis Tilt: ±120°
C Axis: 360°

🔹 Tooling System:
ATC Capacity: 76 Tools
Max Tool Diameter: 130 mm
Max Tool Weight: 5 kg

🔹 Dimensions & Weight:
Machine Dimensions: 3810 x 2895 x 2670 mm
Dsdpfotwyc Sjx Afzjul
Machine Weight: 8,500 kg

✅ Highlights:
Advanced 5-Axis Mill-Turn with B-Axis Head
Powerful and Flexible Dual-Spindle Configuration
High-Speed Tool Spindle (20,000 rpm) with Capto C5
Fully tooled with coolant system, filters, tool holders, and more
In-machine tool setting and bar feed ready
Ideal for high-precision, high-complexity parts

📈 Perfect For:
Aerospace machining
Medical device manufacturing
Precision mechanical components
High-mix, low-volume or complex geometry parts
