CNC LATHE

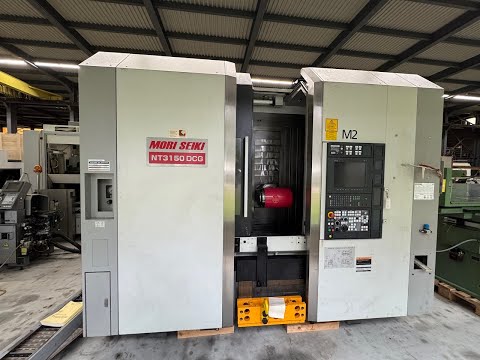

Mori Seiki NT3150DCG-500C

Control MSX-711 (Fanuc 3Li) for 5axes simult.
Spindel A2-5
40 pos. ATC type Capto C5
Fpedpfx Ahod Hkucj Eel
Bar-feeder LNS MoveS2

INVENTORY NR.2180207, MACHINE EQUIPPED WITH :

Control MSX-711 (FANUC 3Li) for 5 axes simultaneous machining, color screen 15’’ and dialog system MAPPS III
Memory capacity up to 1000 programs
Options : tools correctors (milling spindle), B tools life gestion, input of tools correctors G10,
3 interpolations, variable thread step (G34), circular threading, personalised macro, high precision contouring control (control II contour AI), card ATA 1 GB, offset tool for 5 axes machining

Chips conveyor (with chain) model/500

B-axis with direct motor (DDS)

ATC type CAPTO C5/ 40 positions

Tools to zero setting system with automatic arm for milling spindle

High-pressure cooling system type KNOLL with 500L tank, pump and paper filtration, for cooling through spindle centre

Cutting fluid coolant unit Type KNOLL

Linear measuring system for Axes X1 / Y / Z1

Tool monitoring system through control of main spindle motor and feed motors

Automatic workpiece measuring system with touch-test RENISHAW and macro B for use in Milling spindle

Light signal

Automatic machine stop

Workpieces receptor vat Ø52mm, L120mm

10 additional M functions

Flange for cylinder, threaded ring, traction tube, bore Ø 52

Clamping chuck HAINBUCH Spanntop Axzug Nova, with stop type 100 for pieces in chuck and for jobs in bars with passage, clamping head type 32, A2-5 direct mounting, adapter

Hydraulic chuck KITAGAWA, type BB206A5, Ø170mm, A2-5 direct mounting, passage Ø52mm

Bar-feeder LNS, Type Move S2
Diameter of roung bars : Ø8 – 80 mm, bars length : 700 mm – 1600 mm ; loading from the front ; longitudinal shift : 470 mm ; set of guidings Ø18-20 Ø24-26 and Ø28-30 ; pushers : 1x Ø 8 – 1x Ø 15 mm ; guiding devices for main spindle Ø 21 – 26 and 31 mm
Fire extinctor through carbonic gas type Tyco KLA III with 10kg CO2

Aspiration system ELBARON RON/A 3000 D-2H with full rest
