VERTICAL MACHINING CENTER

Mori Seiki TV-30

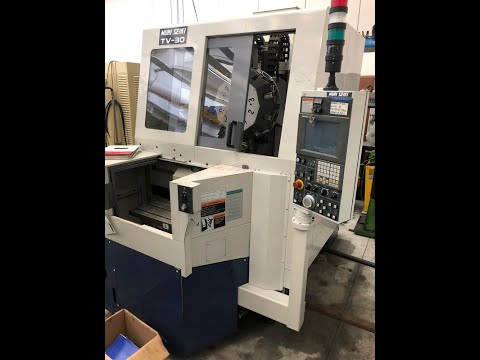

The MORI SEIKI TV-30 is a compact and precise vertical machining center, designed for drilling, tapping, and milling operations on small components. Manufactured in 1996, it is equipped with a Mitsubishi Meldas MSC-802M control and features characteristics ideal for high-speed light machining work, with an automatic tool changer and a well-sized table relative to its compact footprint.

General Technical Data
Brand: MORI SEIKI
Fpedpfx Aoxfaw Djh Eel
Model: TV-30
Category: Vertical Machining Centers
Year of manufacture: 08-1996
CNC Control: Mitsubishi Meldas MSC-802M
Machine weight: 2 tons

Machine Dimensions:
Length: 1,200 mm
Width: 1,720 mm
Height: 2,260 mm

Spindle
Spindle speed: 8,000 rpm
Spindle motor power (cont./30 min):
- 3.7 / 2.2 kW (continuous)
- 5.5 / 3.7 kW (30 min)

Machining Capacity
X-Axis travel: 420 mm
Y-Axis travel: 300 mm + 60 mm
Z-Axis travel: 250 mm
Maximum drilling diameter: 13 mm
Maximum tapping diameter: M12

Table
Table size: 600 x 340 mm
Table load capacity: 150 kg

Feed Rates
Rapid traverse X / Y / Z axes: 48,000 mm/min
Working feedrates X / Y / Z in linear interpolation (max): 12,000 mm/min
Manual feedrates: 0 – 1,260 mm/min

Tool Changer
Tool taper: BT-30
Shank: MAS-P30T-1 45°
Tool magazine capacity: 10 stations
Max. diameter of adjacent tools: Ø 80 mm
Max. tool length: 200 mm
Max. tool weight: 3 kg

Other Equipment
Manuals, Electrical Schematics and CE Declaration
100-liter coolant tank with pump
Transformer
