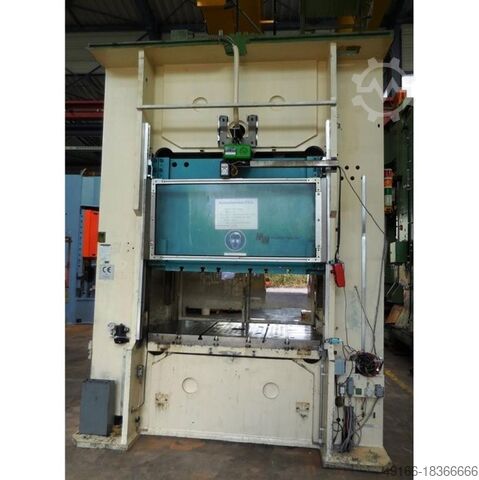

Double Column Drawing Press -Hydr.

MUELLER SKZ 315-16.1.2 (UVV)

pressure 315 t
distance between columns 1660 mm
stroke 400 mm
Distance table/ram, stroke up 600 mm
Table surface area 1600 x 1000 mm
table height over floor 960 mm
Die cushion pressure in table 80 t
Die cushion stroke in table 200 mm
Die cushion area in table 950 x 650 mm
Side window 720 mm
Cgjdpfxevuuhmo Agmsp
Ram surface 1600 x 1000 mm
Oil volume 1400 l
Power capacity 57,0 kW
Weight 30,0 t
Dimensions (WxDxH) 3,0 x 2,9 x 4,4 m
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, hydraulic drawing cushion in table
can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
