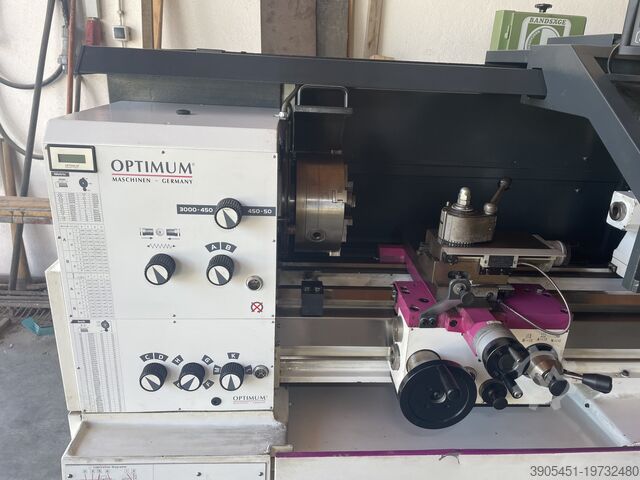

Conventional lathe with digital position measuring system

Optimum Optiturn TZ 4V

Length: 1960 mm Width/Depth: 1060 mm Height: 1690 mm Weight: 1250 kg Main drive motor power: 5.5 kW Total connected load: 5 kW Total current consumption: Electrical voltage: 400 V Phase(s): 3 AC Mains frequency: 50 Hz Spindle mounting: DIN ISO 702-1 No. 5 Spindle bore/bar capacity diameter: 52 mm Centre height: 200 mm Centre distance: 800 mm Swing over bed: 400 mm Swing over cross slide: 245 mm Bed width: 260 mm Speed range: 30 - 3000 rpm Number of speed ranges: 2 Travel X-axis: 112 mm Travel Z-axis: 212 mm Tailstock quill: MT 3 Tailstock quill stroke: 110 mm Tailstock quill diameter: 50 mm Coolant system Coolant pump power: 125 W Spindle taper: MT 6 Longitudinal feed range: 0.0263 - 1.8416 mm/rev Number of longitudinal feeds: 48 Cross feed range: 0.0133 - 0.9321 mm/rev Number of cross feeds: 48 Metric thread pitch: 0.2 - 14 mm/rev Number of metric thread pitches: 22 Inch thread pitch: 80 - 1 TPI Number of inch thread pitches: 42 Module thread pitch: 0.1 - 7 mm/rev Number of module thread pitches: 44
