L + Z lathe, turning machine, mechanic's lathe

WEILER LZ PRIMUS GS

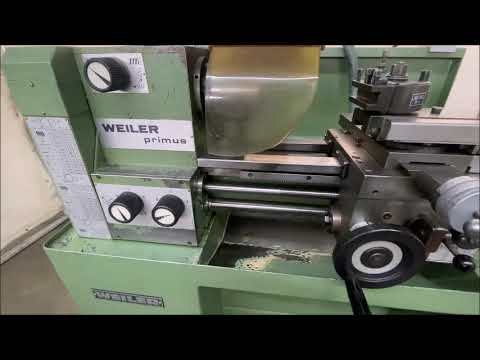

L + Z Lathe WEILER Type LZ PRIMUS GS
Cjdpfx Agertd Uws Tegl
Machine no. No. 2461 Year of construction approx. 1990
Center width 400 mm
Turning diameter over bed 250 mm
Center height above bed 125 mm
Turning diameter over support 140 mm
Center height above support 70 mm
Spindle bore 24 mm
Spindle speed 60 - 3000 rpm 18 steps
Feed lengthwise and flat
Chuck flange short taper DIN 55022 size 4
Inner tailstock taper MK 2
Drive power 1.1 kW and 1.5 kW pole-changing
Mains connection 380 Volt, 50 Hz
- 3-axis digital readout FAGOR, type 30i-T-B
- Spindle speed via 2 motor speeds and 9 gear stages
- 3-jaw lathe chuck RÖHM Ø 125 mm with stepped jaws
- MULTIFIX quick-change tool holder with 1 interchangeable cassette
- Set of collets Ø 1 / 3 / 4 / 5 / 7 / 8 / 10 / 14 / 15 / 16 / 17 / 19 / 20 / mm
- 1 centering tip for collet chuck holder
- Emergency stop
- Hinged chuck guard
- Splash guard
- Machine light
- electrical diagram
- Machine mounted on a steel plate (steel plate L x W x H 1200 x 500 x 30 mm, 140 kg)
Space requirement L x W x H 1200 x 900 x 1560 mm
Weight 520 kg
good condition
