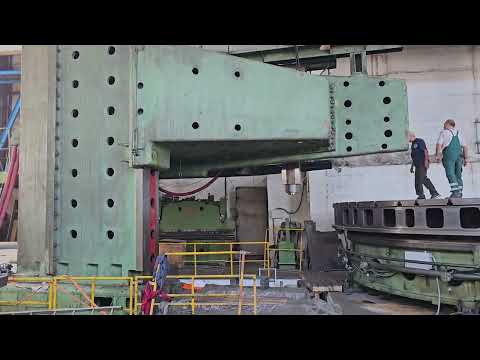

Single Column Vertical Turning Lathe

Blansko SKSJ 1A faceplate 6300mm

Completely retrofitted Single Column Vertical Turning Lathe Blansko SKSJ 1A, equipped with a single vertical head suitable for both turning and milling operations.

Technical specifications:
- Face plate diameter: 6,300 mm
- Maximum achievable outer diameter (with column at max. extension): 11,200 mm
- Maximum workpiece height: 4,800 mm
- Maximum turning diameter (column positioned near face plate): 8,000 mm
- Maximum turning diameter (column at maximum extension, for internal turning): 16,000 mm
- Infinitely variable face plate speed: 0.5 to 20 rpm
Knjdjw Hfm Nspfx Aaajd
- Maximum permissible workpiece weight on face plate: 125 tons

The machine underwent a comprehensive retrofit in 2024-2025 and is equipped with the following brand-new components:
- New electrical cabinet with CE-compliant components (Siemens, Schrack, etc.)
- New Siemens 828 CNC, 100 kW main drive motor, 27 Nm feed motors, and ZF reducers (ratio 1:5)
- New ballscrews on 2 axes (vertical head and cross rail)
- New Heidenhain absolute scales on 2 axes
- Hydraulic and lubrication systems fitted with CE-compliant components (Rexroth, Brevini, Atos, etc.)
- New DROPSA (Italy) or equivalent central lubrication system
- Geometric accuracy according to ISO standards – as per new-machine specifications

For further information, please contact us.
