CNC LATHE

DMG Mori Seiki NL2500Y/700 con asse Y usato revisionato

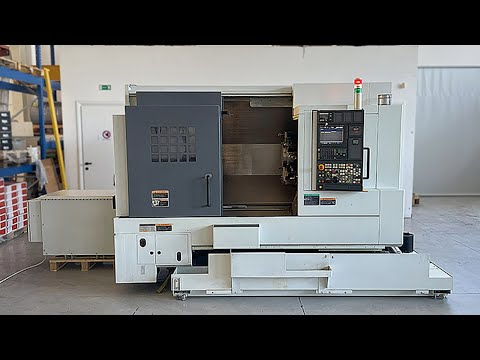

Mori Seiki NL2500Y/700 CNC Lathe – with Y-Axis – Used & Fully Refurbished, Immediately Ready for Operation

The machine is in excellent condition, completely overhauled by qualified technicians and fully functional.
Ideal for precision machining with Y-axis and live tooling.

Main Specifications:
- Year of manufacture: 2005
- CNC control: Mori Seiki MSX-850
- Max. swing diameter: 755 mm
- Max. turning diameter: 356 mm
- Max. turning length: 705 mm
- Bar capacity: 80 mm
- Spindle bore: 81 mm

Spindle and Turret:
- Kitagawa BB210 3-jaw chuck (clamping range 41–254 mm)
- Spindle speed: up to 4,000 rpm
- 12-position turret
- Powered tools up to 6,000 rpm
- Included: 4 driven toolholders and 7 static toolholders

Axes:
- X-axis travel: 260 mm
- Y-axis travel: ±50 mm
- Z-axis travel: 795 mm
- Rapid traverse X/Z: 30 m/min

Additional Features:
- Tailstock (734 mm travel, MT3 fitting)
- Belt-type chip conveyor
- Tool presetting system
- Parts catcher ("manina")

Dimensions and Weight:
- Footprint: 3,100 x 1,920 x H 2,220 mm
- Weight: 6,200 kg

Machine supplied with:
- 2x radial driven toolholders
- 1x axial driven toolholder
- 8x static toolholders (boring bar and standard toolholders)

Fgjdpfevw Acksx Ab Tja
The machine is available for testing and demonstrations at our showroom or via video call and is immediately ready for use.
